What Is An OBD2 Interface And How Does It Work?

The OBD2 interface serves as your vehicle’s internal diagnostic system, representing a standardized protocol facilitating the retrieval of diagnostic trouble codes (DTCs) and real-time data through the OBD2 connector, a service CAR-TOOL.EDU.VN can assist you with. This comprehensive guide explains the OBD2 interface, highlighting its importance in modern vehicle diagnostics and maintenance, alongside emerging trends like OBD3. Leverage insights from CAR-TOOL.EDU.VN to enhance your understanding of vehicle diagnostics and equip yourself with the knowledge to make informed decisions regarding vehicle maintenance and performance.

1. What Is OBD2?

OBD2, or On-Board Diagnostics II, represents a pivotal system integrated into vehicles, providing a standardized method for accessing diagnostic information. It’s essentially your car’s built-in health monitor. This system allows technicians and vehicle owners to retrieve diagnostic trouble codes (DTCs) and real-time data, all accessible through the OBD2 connector.

You’ve likely encountered OBD2 if you’ve ever seen the malfunction indicator light on your dashboard. This light signals an issue, prompting a visit to a mechanic who will use an OBD2 scanner to identify the problem. The scanner connects to the OBD2 16-pin connector, typically found near the steering wheel. It sends ‘OBD2 requests’ to the car, which then responds with data like speed, fuel level, and DTCs, speeding up the troubleshooting process.

The malfunction indicator light (MIL) alerts drivers to potential issues detectable through the OBD2 interface.

2. Is My Car OBD2 Compliant?

The likelihood is high, particularly if it’s a newer, non-electric vehicle. Most of these cars support OBD2 and operate on the CAN bus. However, it’s worth noting that the presence of a 16-pin OBD2 connector doesn’t guarantee OBD2 support, especially in older models. Scantool.net highlights how to confirm OBD-II compliance by checking where and when the car was originally purchased. Here’s a breakdown:

• United States: Mandatory for cars and light trucks manufactured in 1996 and later.
• European Union: Required for gasoline cars from 2001 and diesel cars from 2003.

Does My Car Have OBD2?

3. A Brief History of OBD2

The history of OBD2 traces back to California, where the California Air Resources Board (CARB) mandated OBD in all new cars from 1991 onwards for emission control. The Society of Automotive Engineers (SAE) then recommended the OBD2 standard, standardizing DTCs and the OBD connector across manufacturers via SAE J1962. This standardization ensured that regardless of the car manufacturer, diagnostic processes could be universally applied.

• 1996: OBD2 became mandatory in the USA for cars and light trucks.
• 2001: The EU required OBD2 for gasoline cars.
• 2003: OBD2 requirements extended to diesel cars in the EU (EOBD).
• 2005: OBD2 was required in the US for medium-duty vehicles.
• 2008: US cars began using ISO 15765-4 (CAN) as the OBD2 basis.
• 2010: OBD2 was required in US heavy-duty vehicles.

The evolution of OBD2 reflects the increasing stringency of emission control standards and diagnostic capabilities.

A timeline illustrating the key milestones in the development and adoption of OBD2 standards.

The future of OBD includes remote diagnostics and integration with cloud-based systems.

4. What Does the Future Hold for OBD2?

OBD2 is set to remain a key technology, but it will likely evolve. Key trends include:

• Electric Vehicle Integration: Current OBD2 standards are less applicable to EVs, which often use OEM-specific UDS communication for diagnostics. Case studies for electric cars show efforts to reverse engineer decoding rules for vehicles like Tesla, Hyundai/Kia, Nissan, and VW/Skoda.
• Enhanced Standards: Alternatives like WWH-OBD and OBDonUDS are being developed to improve OBD communication using the UDS protocol.
• OBD3 and Telematics: OBD3 aims to add telematics to all cars, enabling remote emission control checks via a radio transponder that sends vehicle identification number (VIN) and DTCs to a central server.
• Data Access Restrictions: Some manufacturers are considering restricting third-party access to OBD2 data while driving, collecting data in a central server to control automotive big data.

Electric vehicles may reduce reliance on traditional OBD2 interfaces, potentially using alternative diagnostic protocols.

5. Understanding OBD2 Standards

On-board diagnostics, or OBD2, is like a language layered on top of the CAN communication method. This positions OBD2 alongside other CAN-based protocols such as J1939, CANopen, and NMEA 2000. The OBD2 standards define the connector, communication protocols, and parameter IDs (PIDs).

These standards are often represented using a 7-layer OSI model, which helps clarify the different aspects of the protocol. The model includes standards from both SAE (used in the USA) and ISO (used in Europe), with many being technically equivalent, such as SAE J1979 versus ISO 15031-5 and SAE J1962 versus ISO 15031-3.

The OBD2 protocol stack within the OSI model, showcasing the integration with CAN bus standards.

6. The OBD2 Connector (SAE J1962)

The OBD2 connector, a 16-pin interface, enables easy access to your vehicle’s data and is standardized under SAE J1962 and ISO 15031-3. This connector, also known as the Data Link Connector (DLC), is typically located near the steering wheel but may be concealed. Key aspects of the OBD2 connector include:

• Pin 16 provides battery power, even when the ignition is off.
• The pinout varies depending on the communication protocol used.
• CAN bus is the most common lower-layer protocol, utilizing pins 6 (CAN-H) and 14 (CAN-L).

A detailed pinout diagram for the OBD2 connector, highlighting key connections.

6.1. Type A vs. Type B Connectors

You may encounter both Type A and Type B OBD2 connectors. Type A is typically found in cars, while Type B is common in medium and heavy-duty vehicles. These types differ in power supply outputs (12V for Type A and 24V for Type B) and baud rates. Type B connectors have an interrupted groove in the middle, making Type B OBD2 adapter cables compatible with both types, while Type A cables will not fit into Type B sockets.

A comparison of Type A and Type B OBD2 connectors, illustrating their differences in voltage and physical structure.

7. OBD2 and CAN Bus (ISO 15765-4)

Since 2008, CAN bus has been the mandatory lower-layer protocol for OBD2 in all cars sold in the US, as defined by ISO 15765. ISO 15765-4, also known as Diagnostics over CAN or DoCAN, sets restrictions on the CAN standard (ISO 11898). It standardizes the CAN interface for test equipment, focusing on the physical, data link, and network layers, specifying:

• CAN bus bit-rates of 250K or 500K.
• CAN IDs of 11-bit or 29-bit.
• Specific CAN IDs for OBD requests/responses.
• Diagnostic CAN frame data length of 8 bytes.
• OBD2 adapter cable length limited to 5 meters.

The relationship between OBD2 and CAN bus, emphasizing the role of ISO 15765 in defining the protocol.

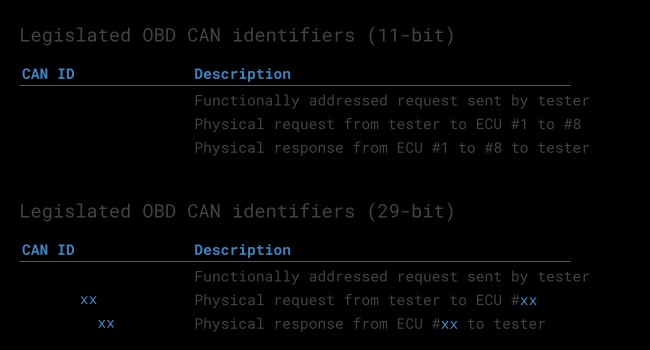

7.1. OBD2 CAN Identifiers (11-bit, 29-bit)

OBD2 communication involves request/response messages. Most cars use 11-bit CAN IDs, with the ‘Functional Addressing’ ID being 0x7DF for querying all OBD2-compatible ECUs. CAN IDs 0x7E0-0x7E7 are used for ‘Physical Addressing’ requests from specific ECUs. ECUs respond with 11-bit IDs 0x7E8-0x7EF, with 0x7E8 (ECM) and 0x7E9 (TCM) being the most common.

Some vehicles use extended 29-bit CAN identifiers, with a ‘Functional Addressing’ CAN ID of 0x18DB33F1. Responses use CAN IDs from 0x18DAF100 to 0x18DAF1FF, often represented as PGN 0xDA00 (55808) in the J1939 standard.

The exchange of request and response frames in OBD2 communication.

OBD2 OBD CAN bus Identifiers 7DF 7E8 7E0

7.2. OBD2 vs. Proprietary CAN Protocols

It’s important to recognize that your car’s ECUs do not depend on OBD2 to function. Each OEM implements its own proprietary CAN protocols, specific to the vehicle brand, model, and year. These protocols are typically inaccessible unless reverse-engineered. Connecting a CAN bus data logger to the OBD2 connector may reveal OEM-specific CAN data, but many newer cars block access to this data, only allowing OBD2 communication. Therefore, OBD2 is an additional higher-layer protocol running alongside the OEM-specific protocol.

The distinction between standardized OBD2 protocols and proprietary CAN protocols used by vehicle manufacturers.

7.3. Bit-Rate and ID Validation

OBD2 may use two bit-rates (250K, 500K) and two CAN ID lengths (11-bit, 29-bit), resulting in four potential combinations. Modern cars commonly use 500K and 11-bit IDs. ISO 15765-4 provides recommendations for a systematic initialization sequence to determine the correct combination. Newer versions of ISO 15765-4 account for OBD communication via OBDonUDS rather than OBDonEDS. Most of this article focuses on OBD2/OBDonEDS (OBD on emission diagnostic service) as opposed to WWH-OBD/OBDonUDS (OBD on Unified Diagnostic Service).

To test the protocol (OBDonEDS vs OBDonUDS), a test tool may send UDS requests with 11-bit/29-bit functional address IDs for service 0x22 and data identifier (DID) 0xF810. Vehicles supporting OBDonUDS must have ECUs that reply to this DID. OBDonEDS is used in most non-EV cars today, while WWH-OBD is primarily used in EU trucks/buses.

A flowchart outlining the steps to validate bit-rate and CAN ID settings for OBD2 communication.

7.4. Five Lower-Layer OBD2 Protocols

While CAN is now the dominant lower-layer protocol for OBD2 (ISO 15765), older cars may use other protocols. These include:

• ISO 15765 (CAN bus): Mandatory in US cars since 2008.
• ISO14230-4 (KWP2000): Common in 2003+ cars, especially in Asia.
• ISO 9141-2: Used in EU, Chrysler & Asian cars in 2000-04.
• SAE J1850 (VPW): Primarily used in older GM cars.
• SAE J1850 (PWM): Primarily used in older Ford cars.

An overview of the five main protocols used as the foundation for OBD2 communication.

8. How Is OBD2 Transported Via ISO-TP (ISO 15765-2)?

All OBD2 data is communicated on the CAN bus using the ISO-TP transport protocol (ISO 15765-2), which allows for payloads larger than 8 bytes. This is necessary for extracting the Vehicle Identification Number (VIN) or Diagnostic Trouble Codes (DTCs). ISO 15765-2 handles segmentation, flow control, and reassembly. When the OBD2 data fits in a single CAN frame, ISO 15765-2 specifies the use of a ‘Single Frame’ (SF), where the first data byte contains the payload length, leaving 7 bytes for OBD2 communication.

Illustrations of the various frame types defined in the ISO 15765-2 protocol for OBD2 communication.

9. Understanding the OBD2 Diagnostic Message (SAE J1979, ISO 15031-5)

An OBD2 message consists of an identifier, a data length (PCI field), and the actual data. The data is further divided into Mode, parameter ID (PID), and data bytes.

A breakdown of the structure of an OBD2 message, showing the components and their arrangement.

9.1. Request/Response Example

Consider the following example for the parameter ‘Vehicle Speed’:

• An external tool sends a request message with CAN ID 0x7DF, including Mode 0x01 and PID 0x0D.
• The car responds with CAN ID 0x7E8, including the vehicle speed value in the 4th byte, 0x32 (50 in decimal form).

Looking up the decoding rules for OBD2 PID 0x0D reveals that the physical value is 50 km/h.

The request and response messages for vehicle speed, demonstrating the flow of data.

A closer look at the OBD2 PID for vehicle speed, showing the data value and its interpretation.

9.2. The 10 OBD2 Services (Modes)

There are 10 OBD2 diagnostic services, or modes. Mode 0x01 shows current real-time data, while others are used to show/clear diagnostic trouble codes (DTCs) or show freeze frame data. Vehicles do not have to support all OBD2 modes and may support OEM-specific modes outside the standardized modes. In OBD2 messages, the mode is in the 2nd byte. In the request, the mode is included directly (e.g., 0x01), while in the response, 0x40 is added to the mode (resulting in 0x41).

The 10 diagnostic services (modes) in OBD2, detailing their functions and uses.

9.3. OBD2 Parameter IDs (PIDs)

Each OBD2 mode contains parameter IDs (PIDs). For example, mode 0x01 contains approximately 200 standardized PIDs with real-time data on speed, RPM, and fuel level. However, vehicles typically support only a small subset of the available PIDs. If an emissions-related ECU supports any OBD2 services, it must support mode 0x01 PID 0x00. This PID provides information on supported PIDs 0x01-0x20, making it a useful ‘OBD2 compatibility test’. PIDs 0x20, 0x40, and so on, can be used to determine support for the remaining mode 0x01 PIDs.

A diagram showing the components of an OBD2 frame with mode and PID highlighted.

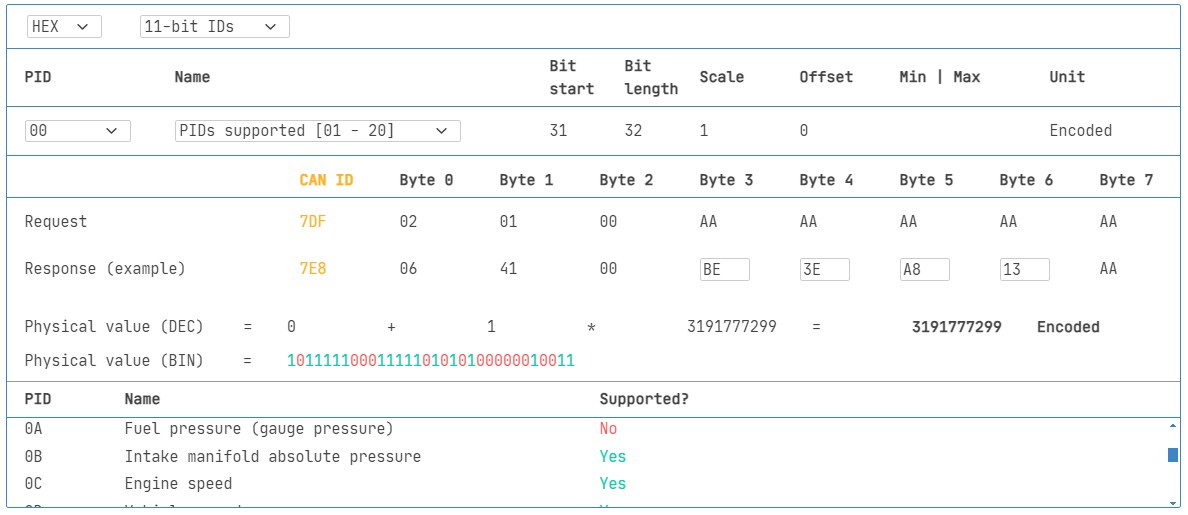

9.4. OBD2 PID Overview Tool

The appendices of SAE J1979 and ISO 15031-5 contain scaling info for standard OBD2 PIDs, allowing you to decode the data into physical values. CAR-TOOL.EDU.VN provides an OBD2 PID overview tool to help construct OBD2 request frames and dynamically decode the OBD2 responses.

OBD2 PID overview tool

10. How Can I Log And Decode OBD2 Data?

You can log OBD2 data using a CAN bus data logger like the CANedge. This device allows you to configure custom CAN frames for transmission and is easily connected to your vehicle via an OBD2-DB9 adapter cable.

Configuring a data logger to capture OBD2 PID data by sending specific request frames.

10.1. Testing Bit-Rate, IDs & Supported PIDs

ISO 15765-4 outlines how to determine the bit-rate and IDs used by a specific vehicle. Here’s how to test this with the CANedge:

1. Send a CAN frame at 500K and check if successful (if not, try 250K).
2. Use the identified bit-rate for subsequent communication.
3. Send multiple ‘Supported PIDs’ requests and review the results.
4. Based on response IDs, determine 11-bit vs. 29-bit.
5. Based on response data, see what PIDs are supported.

OBD2 bit rate test

OBD2 Supported PIDs Test

Review supported PIDs via OBD2 lookup tool

Most 2008+ non-EV cars support 40-80 PIDs via a 500K bit-rate, 11-bit CAN IDs, and the OBD2/OBDonEDS protocol. Multiple responses to a single OBD request are common, as the 0x7DF request ID polls all ECUs.

10.2. Configuring OBD2 PID Requests

After determining which PIDs are supported, configure your transmit list with the PIDs of interest. Consider:

• CAN IDs: Use ‘Physical Addressing’ request IDs (e.g., 0x7E0) to avoid multiple responses.
• Spacing: Add 300-500 ms between each OBD2 request to prevent ECU overload.
• Battery Drain: Use triggers to stop transmitting when the vehicle is inactive.
• Filters: Add filters to record only OBD2 responses.

With the device configured, you can now log raw OBD2 data.

obd2-transmit-list-example-canedge

10.3. DBC Decoding Raw OBD2 Data

To analyze your data, you must decode the raw OBD2 data into ‘physical values’. This decoding information is found in ISO 15031-5/SAE J1979. CAR-TOOL.EDU.VN offers a free OBD2 DBC file to facilitate DBC decoding in most CAN bus software tools. Decoding OBD2 data is more complex than regular CAN signals because different OBD2 PIDs are transported using the same CAN ID (e.g., 0x7E8). As such, you must use both the CAN ID, OBD2 mode, and OBD2 PID to identify the signal. This is a form of multiplexing referred to as ‘extended multiplexing’, which can be implemented in DBC files.

OBD2 data decoded visual plot asammdf CAN bus DBC file

11. OBD2 Multi-Frame Examples (ISO-TP)

OBD2 data is communicated using the ISO-TP transport protocol (ISO 15765-2). Most examples so far reflect single-frame communication. Multi-frame communication requires flow control frames. A static flow control frame can be transmitted 50 ms after the initial request frame. Multi-frame OBD2 responses require CAN software/API tools that support ISO-TP.

OBD2-multi-frame-request-message-vehicle-identification-number

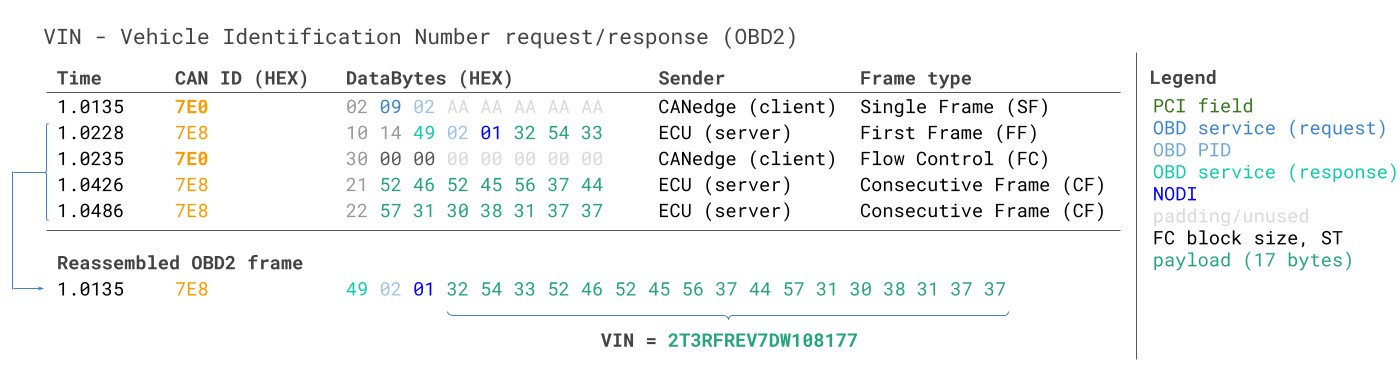

11.1. Example 1: OBD2 Vehicle Identification Number (VIN)

The Vehicle Identification Number (VIN) is vital for telematics and diagnostics. To extract the VIN using OBD2 requests, use mode 0x09 and PID 0x02. The tester tool sends a Single Frame request, and the vehicle responds with a First Frame containing the PCI, length, mode (0x49), and PID (0x02). Following the PID is the Number Of Data Items (NODI), typically 1. The remaining bytes equal the VIN and can be translated from HEX to ASC.

VIN Vehicle Identification Number OBD2 Example multi-frame

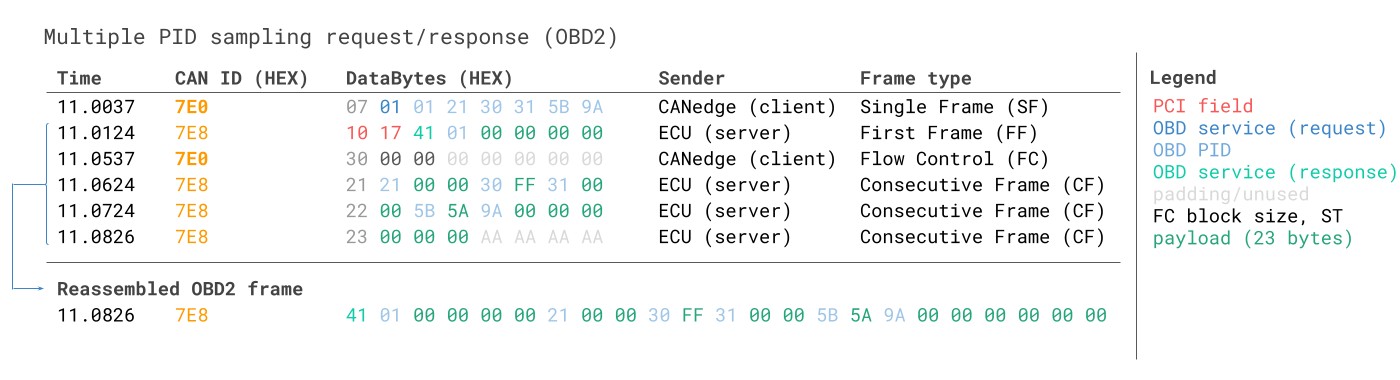

11.2. Example 2: OBD2 Multi-PID Request (6x)

External tools can request up to 6 mode 0x01 OBD2 PIDs in a single request frame. The ECU responds with data for supported PIDs, potentially across multiple frames. This method allows for higher frequency data collection, but it also makes the signal encoding specific to your request method, complicating the use of generic OBD2 DBC files.

Requesting multiple PIDs in one request

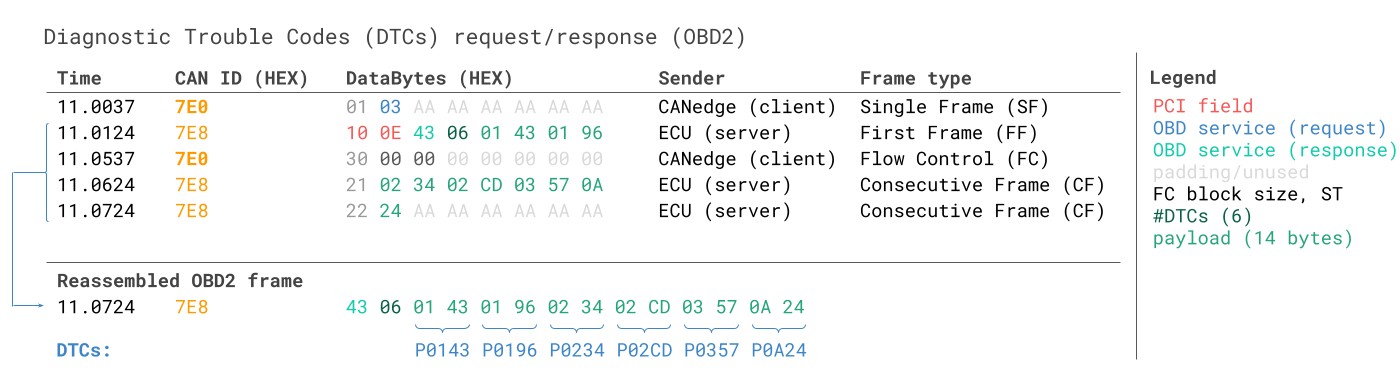

11.3. Example 3: OBD2 Diagnostic Trouble Codes (DTCs)

You can request emissions-related Diagnostic Trouble Codes (DTCs) using mode 0x03 (‘Show stored Diagnostic Trouble Codes’). The targeted ECU responds with the number of stored DTCs, each taking up 2 data bytes. Multi-frame responses are necessary when more than 2 DTCs are stored. The 2-byte DTC value is split into two parts: the first 2 bits define the ‘category’, and the remaining 14 bits define a 4-digit code.

The structure of a DTC and its interpretation, illustrating the categories and codes.

OBD2 Diagnostic Trouble Codes DTC CAN Bus Request Response Example

12. What Are the Use Cases for OBD2 Data Logging?

OBD2 data from cars and light trucks is used in various applications:

12.1. Data Logging from Cars

OBD2 data helps reduce fuel costs, improve driving habits, test prototype parts, and assist in insurance assessments.

An OBD2 data logger installed in a car to monitor various parameters.

12.2. Real-Time Car Diagnostics

OBD2 interfaces stream human-readable data in real-time, useful for diagnosing vehicle issues.

Real-time diagnostics with OBD2 streaming to identify and resolve issues.

12.3. Predictive Maintenance

Cars and light trucks monitored via IoT OBD2 loggers in the cloud can predict and avoid breakdowns.

Predictive maintenance enabled by cloud-connected OBD2 loggers.

12.4. Vehicle Blackbox Logger

An OBD2 logger serves as a ‘blackbox’ for vehicles, providing data for disputes or diagnostics.

An OBD2 logger functioning as a vehicle blackbox for data recording.

13. Frequently Asked Questions (FAQ) About OBD2 Interfaces

13.1. What Type of OBD2 Interface Do I Need for My Car?

The OBD2 interface type depends on your vehicle’s make, model, and year. Most modern cars use the standard 16-pin connector, but older cars might require adapters due to different protocols. Consulting your vehicle’s manual or using an OBD2 compatibility checker can provide clarity.

13.2. How Do I Read OBD2 Data Without a Scanner?

While a dedicated scanner is the most straightforward method, some smartphone apps paired with a Bluetooth OBD2 adapter can display real-time data. However, these methods might offer fewer functionalities compared to professional-grade scanners.

13.3. Can OBD2 Interface Drain My Car Battery?

Yes, some OBD2 devices can drain your car battery if left plugged in for extended periods while the car is off. It’s advisable to unplug the device when not in use or choose models with low power consumption.

13.4. Where Can I Find Reliable OBD2 Codes?

You can find reliable OBD2 codes on CAR-TOOL.EDU.VN, websites like RepairPal, or through professional diagnostic tools. Always cross-reference codes with your vehicle’s manual or a trusted mechanic to ensure accurate interpretation.

13.5. What Is the Difference Between OBD1 and OBD2?

OBD1 is an earlier, less standardized version, varying widely between manufacturers. OBD2 is a more standardized system, offering universal diagnostic codes and enhanced monitoring capabilities across different vehicle brands.

13.6. Can I Clear OBD2 Codes Myself?

Yes, you can clear OBD2 codes using a scanner or certain apps with an OBD2 adapter. However, clearing codes without addressing the underlying issue might lead to the problem recurring.

13.7. What Are the Limitations of OBD2?

OBD2 primarily focuses on emissions-related issues and might not cover all vehicle systems. It also has limited data resolution and update rates compared to OEM-specific diagnostic tools.

13.8. Is It Safe to Buy a Cheap OBD2 Scanner?

While cheaper scanners can read basic codes, they might lack advanced features, accuracy, and software updates. Investing in a reputable brand ensures reliability and access to more comprehensive diagnostic information.

13.9. What Is the Role of CAN Bus in OBD2?

CAN Bus (Controller Area Network) is the communication protocol used by OBD2 to transmit data between the vehicle’s ECUs and the diagnostic tool, enabling efficient and high-speed communication.

13.10. How Does the OBD2 Interface Help in Vehicle Maintenance?

The OBD2 interface provides valuable insights into your vehicle’s health, allowing for proactive maintenance, early detection of potential issues, and informed decision-making regarding repairs.
