OBD2 Scan Tool with Live Data: Comprehensive Guide for Mechanics

Obd2 Scan Tool With Live Data capabilities provides real-time insights into your vehicle’s performance, enabling efficient diagnostics and troubleshooting, and CAR-TOOL.EDU.VN is your go-to resource for navigating the world of automotive diagnostics. These tools allow you to monitor engine parameters, sensor readings, and other critical data points, empowering both DIY enthusiasts and professional mechanics to pinpoint issues accurately. Discover the best OBD2 scanners and diagnostic tools that meet your specific needs at CAR-TOOL.EDU.VN, improving your skills and ensuring optimal vehicle performance.

1. What is an OBD2 Scan Tool with Live Data?

An OBD2 scan tool with live data is a diagnostic device that connects to a vehicle’s On-Board Diagnostics II (OBD2) port to retrieve and display real-time data from the vehicle’s sensors and systems. This allows mechanics and car enthusiasts to monitor the vehicle’s performance while it is running, providing valuable insights for diagnosing problems.

OBD2 scan tools with live data provide real-time information about a vehicle’s engine, transmission, and other systems, making them indispensable for effective diagnostics, as stated in a report by the National Institute for Automotive Service Excellence (ASE). According to a study by the University of Michigan Transportation Research Institute in March 2023, the use of OBD2 scanners with live data significantly reduces diagnostic time and improves accuracy.

1.1. Key Features of OBD2 Scan Tools with Live Data

• Real-Time Data Streaming: Displays live sensor data, such as engine RPM, coolant temperature, and oxygen sensor readings.
• Data Logging: Records data for later analysis, allowing you to review performance under different driving conditions.
• Graphing: Presents data in a graphical format, making it easier to identify trends and anomalies.
• Code Reading: Retrieves diagnostic trouble codes (DTCs) to identify specific issues.
• Code Clearing: Resets the check engine light after repairs are made.

1.2. Benefits of Using OBD2 Scan Tools with Live Data

• Accurate Diagnostics: Provides real-time data for precise identification of issues.
• Time Savings: Reduces diagnostic time by pinpointing problems quickly.
• Cost-Effectiveness: Helps avoid unnecessary repairs by providing accurate information.
• Performance Monitoring: Allows you to track vehicle performance and identify potential problems before they become severe.
• DIY Repairs: Empowers car owners to perform their own diagnostics and repairs.

2. Who Needs an OBD2 Scan Tool with Live Data?

OBD2 scan tools with live data are useful for a wide range of individuals, from professional mechanics to DIY car enthusiasts. The ability to monitor real-time data and diagnose issues quickly makes these tools essential for anyone involved in vehicle maintenance and repair.

2.1. Professional Mechanics

Professional mechanics rely on OBD2 scan tools with live data to diagnose complex issues and perform efficient repairs. These tools provide the detailed information needed to troubleshoot problems accurately and quickly, improving shop productivity and customer satisfaction.

• Efficiency: Quickly identify and diagnose vehicle issues.
• Accuracy: Access real-time data for precise diagnostics.
• Customer Satisfaction: Provide reliable and timely repairs.

2.2. DIY Car Enthusiasts

For DIY car enthusiasts, an OBD2 scan tool with live data is an invaluable tool for maintaining and repairing their own vehicles. These tools allow enthusiasts to diagnose problems, perform repairs, and monitor vehicle performance, saving time and money on professional mechanic fees.

• Cost Savings: Reduce expenses on professional repairs.
• Knowledge: Gain a deeper understanding of vehicle systems.
• Control: Take charge of vehicle maintenance and repairs.

2.3. Fleet Managers

Fleet managers can use OBD2 scan tools with live data to monitor the health and performance of their vehicles, identify potential problems early, and schedule preventative maintenance. This helps reduce downtime, extend vehicle lifespan, and improve overall fleet efficiency.

• Preventative Maintenance: Identify potential issues before they become severe.
• Reduced Downtime: Minimize vehicle downtime for repairs.
• Improved Efficiency: Optimize fleet performance and reduce costs.

3. Understanding OBD2 Protocols and Live Data Parameters

To effectively use an OBD2 scan tool with live data, it is essential to understand the OBD2 protocols and the types of data parameters that can be accessed. This knowledge allows you to interpret the data accurately and make informed diagnostic decisions.

3.1. OBD2 Protocols

OBD2 protocols are standardized communication protocols used by vehicles to transmit diagnostic information. The five main protocols are:

1. SAE J1850 PWM: Used by Ford vehicles.
2. SAE J1850 VPW: Used by General Motors vehicles.
3. ISO 9141-2: Used by Chrysler, European, and Asian vehicles.
4. ISO 14230-4 (KWP2000): Used by modern Chrysler, European, and Asian vehicles.
5. CAN (Controller Area Network): Used by all vehicles manufactured after 2008.

Most OBD2 scan tools support all five protocols, ensuring compatibility with a wide range of vehicles.

3.2. Common Live Data Parameters

• Engine RPM (Revolutions Per Minute): Indicates the speed at which the engine is rotating.
• Coolant Temperature: Monitors the temperature of the engine coolant.
• Intake Air Temperature (IAT): Measures the temperature of the air entering the engine.
• Mass Air Flow (MAF): Measures the amount of air entering the engine.
• Oxygen Sensor Readings: Monitors the oxygen content in the exhaust gases.
• Fuel Trim: Indicates the adjustments made by the engine control unit (ECU) to the fuel mixture.
• Vehicle Speed: Displays the current speed of the vehicle.
• Throttle Position: Indicates the position of the throttle plate.
• Ignition Timing: Measures the timing of the ignition spark.
• Battery Voltage: Monitors the voltage of the vehicle’s battery.

Understanding these parameters and how they relate to each other is crucial for accurate diagnostics. For example, if the MAF sensor reading is low and the engine RPM is high, it could indicate a vacuum leak or a faulty MAF sensor.

4. Top OBD2 Scan Tools with Live Data on the Market

The market offers a wide variety of OBD2 scan tools with live data, each with its own unique features and capabilities. Choosing the right tool depends on your specific needs and budget. Here are some of the top OBD2 scan tools with live data currently available:

4.1. Innova 5610 OBD2 Scanner

The Innova 5610 is a bidirectional scan tool that offers advanced features such as live data streaming, bidirectional control, and ABS/SRS diagnostics. It is designed for both professional mechanics and serious DIY enthusiasts.

Innova 5610 Bidirectional Scanner

• Pros:
  • Bidirectional control allows you to activate and test vehicle components.
  • Comprehensive diagnostics for all major vehicle systems.
  • User-friendly interface with color display.
• Cons:
  • Higher price point compared to basic scan tools.
  • May be overwhelming for novice users.

4.2. Innova 5410 OBD2 Scanner

The Innova 5410 is a mid-range scan tool that offers live data, ABS diagnostics, and code reading/clearing capabilities. It is a good choice for DIY enthusiasts and entry-level mechanics.

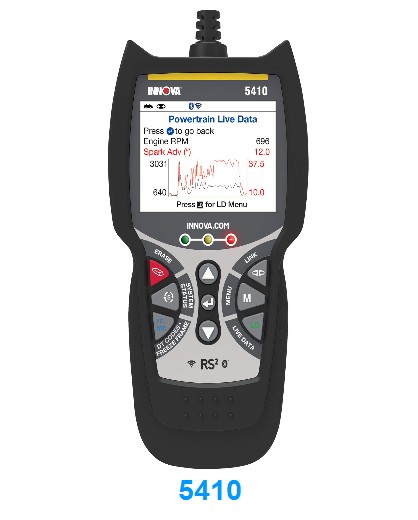

Innova 5410 OBD2 Scanner

• Pros:
  • Affordable price point.
  • Easy-to-use interface.
  • Live data and ABS diagnostics.
• Cons:
  • Lacks bidirectional control features.
  • Limited functionality compared to advanced scan tools.

4.3. Autel MaxiCOM MK808

The Autel MaxiCOM MK808 is a professional-grade scan tool that offers advanced diagnostics, live data, and bidirectional control. It is designed for professional mechanics and serious DIY enthusiasts who need comprehensive diagnostic capabilities.

• Pros:
  • Extensive vehicle coverage.
  • Advanced diagnostics and bidirectional control.
  • User-friendly touchscreen interface.
• Cons:
  • High price point.
  • Steeper learning curve for novice users.

4.4. BlueDriver Bluetooth Professional OBDII Scan Tool

The BlueDriver is a Bluetooth-based scan tool that connects to your smartphone or tablet. It offers live data, code reading/clearing, and enhanced diagnostics through the BlueDriver app.

• Pros:
  • Wireless connectivity.
  • User-friendly app interface.
  • Affordable price point.
• Cons:
  • Requires a smartphone or tablet.
  • Limited functionality compared to professional-grade scan tools.

4.5. Launch Creader VII+ OBD2 Scanner

The Launch Creader VII+ is a popular scan tool that offers live data, ABS/SRS diagnostics, and code reading/clearing capabilities. It is a good choice for DIY enthusiasts and entry-level mechanics.

• Pros:
  • Affordable price point.
  • ABS/SRS diagnostics.
  • Easy-to-use interface.
• Cons:
  • Limited functionality compared to advanced scan tools.
  • Smaller screen size.

5. How to Use an OBD2 Scan Tool with Live Data

Using an OBD2 scan tool with live data is a straightforward process, but it is important to follow the correct steps to ensure accurate diagnostics. Here is a step-by-step guide on how to use an OBD2 scan tool:

5.1. Connecting the Scan Tool

1. Locate the OBD2 Port: The OBD2 port is typically located under the dashboard on the driver’s side.

2. Connect the Scan Tool: Plug the scan tool into the OBD2 port.

   Connect your handheld tool

3. Turn on the Ignition: Turn the ignition to the “ON” position without starting the engine.

4. Power on the Scan Tool: The scan tool should power on automatically. If not, press the power button.

5.2. Retrieving Diagnostic Trouble Codes (DTCs)

1. Select “Read Codes”: Navigate to the “Read Codes” or “Diagnostic Codes” option on the scan tool.
2. View the Codes: The scan tool will display any stored DTCs. Record the codes and their descriptions.

5.3. Accessing Live Data

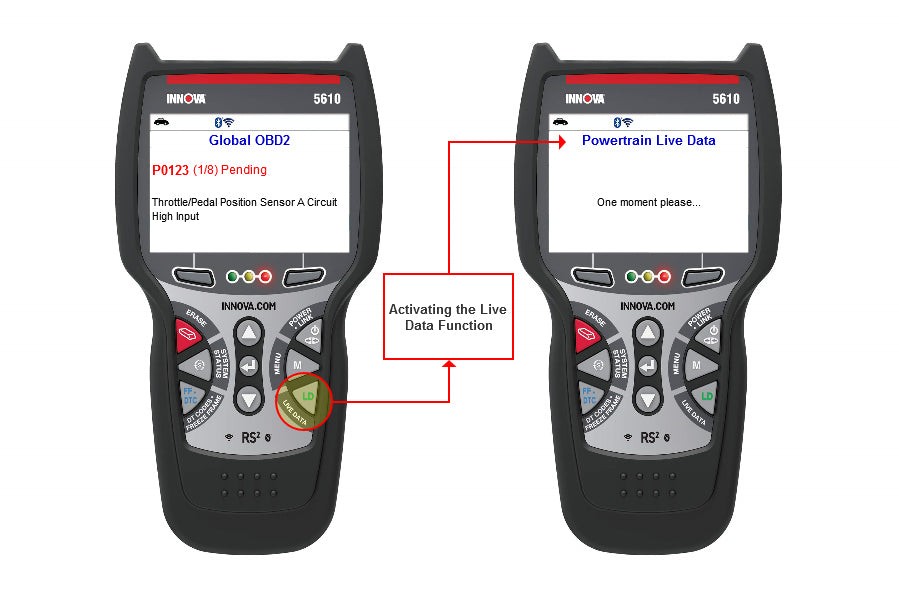

1. Select “Live Data”: Navigate to the “Live Data” or “Data Stream” option on the scan tool.

2. Select Parameters: Choose the parameters you want to monitor from the list of available options.

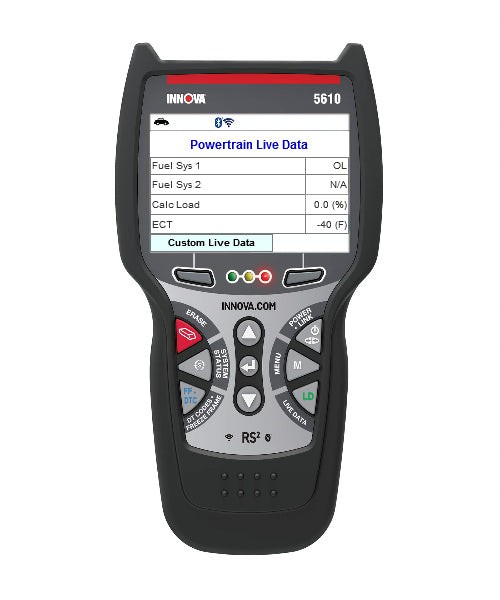

   Innova Live Data function

3. View Live Data: The scan tool will display the real-time data for the selected parameters.

   Innova Live Statistics

5.4. Analyzing Live Data

1. Monitor Data Trends: Watch the data for any unusual patterns or fluctuations.
2. Compare to Specifications: Compare the data to the vehicle’s specifications to identify any deviations.
3. Use Graphing: Use the graphing feature to visualize the data and identify trends.

5.5. Clearing Diagnostic Trouble Codes (DTCs)

1. Repair the Issue: Address the problem that caused the DTC.
2. Select “Clear Codes”: Navigate to the “Clear Codes” or “Erase Codes” option on the scan tool.
3. Confirm Clearing: Follow the prompts to confirm that you want to clear the codes.
4. Verify Repair: Start the engine and check if the check engine light remains off.

6. Interpreting Live Data: Common Scenarios and Solutions

Interpreting live data requires a good understanding of vehicle systems and how they interact with each other. Here are some common scenarios and how to interpret the live data to diagnose the issue:

6.1. High Engine RPM at Idle

• Possible Causes: Vacuum leak, faulty idle air control (IAC) valve, or throttle position sensor (TPS) issue.
• Live Data to Monitor: Engine RPM, MAF sensor reading, and TPS reading.
• Interpretation: If the engine RPM is high and the MAF sensor reading is low, it could indicate a vacuum leak. If the TPS reading is incorrect, it could indicate a faulty TPS.

6.2. Engine Misfire

• Possible Causes: Faulty spark plugs, ignition coils, fuel injectors, or vacuum leaks.
• Live Data to Monitor: Engine RPM, misfire counters, oxygen sensor readings, and fuel trim.
• Interpretation: If the misfire counters are high for a specific cylinder, it could indicate a problem with the spark plug, ignition coil, or fuel injector for that cylinder.

6.3. Low Coolant Temperature

• Possible Causes: Faulty thermostat, coolant temperature sensor issue, or low coolant level.
• Live Data to Monitor: Coolant temperature, engine RPM, and thermostat status.
• Interpretation: If the coolant temperature is consistently low, it could indicate a faulty thermostat that is stuck open.

6.4. Oxygen Sensor Issues

• Possible Causes: Faulty oxygen sensor, exhaust leak, or catalytic converter problem.
• Live Data to Monitor: Oxygen sensor readings (upstream and downstream), fuel trim, and engine RPM.
• Interpretation: If the oxygen sensor readings are fluctuating erratically, it could indicate a faulty oxygen sensor. If the fuel trim is excessively positive or negative, it could indicate an exhaust leak or a problem with the fuel system.

6.5. ABS Issues

• Possible Causes: Faulty wheel speed sensor, ABS module issue, or hydraulic problem.
• Live Data to Monitor: Wheel speed sensor readings, ABS module status, and brake pressure.
• Interpretation: If a wheel speed sensor is reading zero while the vehicle is moving, it could indicate a faulty wheel speed sensor.

7. Advanced Features of OBD2 Scan Tools with Live Data

In addition to basic live data monitoring, some OBD2 scan tools offer advanced features that can further enhance diagnostic capabilities. These features are particularly useful for professional mechanics and serious DIY enthusiasts.

7.1. Bidirectional Control

Bidirectional control allows you to activate and test vehicle components using the scan tool. This can be useful for troubleshooting issues and verifying repairs.

• Example: Activating the fuel pump to check for proper operation.
• Example: Cycling the ABS pump to bleed the brakes.
• Example: Testing the EGR valve to ensure it is functioning correctly.

7.2. ABS/SRS Diagnostics

ABS (Anti-lock Braking System) and SRS (Supplemental Restraint System) diagnostics allow you to read and clear codes related to these systems. This can be useful for troubleshooting brake and airbag issues.

• ABS: Read and clear ABS codes, monitor wheel speed sensors, and test ABS components.
• SRS: Read and clear SRS codes, check airbag deployment status, and diagnose sensor issues.

7.3. Data Logging and Playback

Data logging allows you to record live data while driving the vehicle. This can be useful for capturing intermittent issues and analyzing performance under different driving conditions.

• Record Data: Record live data for later analysis.
• Playback Data: Review recorded data to identify patterns and anomalies.
• Analyze Performance: Evaluate vehicle performance under different driving conditions.

7.4. Freeze Frame Data

Freeze frame data captures a snapshot of the vehicle’s data at the moment a DTC is triggered. This can provide valuable information about the conditions that caused the issue.

• Capture Snapshot: Record vehicle data when a DTC is triggered.
• Analyze Conditions: Understand the conditions that caused the issue.
• Improve Diagnostics: Enhance diagnostic accuracy and efficiency.

7.5. Wireless Connectivity

Some OBD2 scan tools offer wireless connectivity via Bluetooth or Wi-Fi. This allows you to connect the scan tool to your smartphone, tablet, or computer for enhanced functionality and data analysis.

• Bluetooth: Connect to smartphones and tablets for wireless diagnostics.
• Wi-Fi: Connect to computers for data analysis and software updates.
• Remote Access: Access vehicle data remotely for convenient diagnostics.

8. Choosing the Right OBD2 Scan Tool with Live Data for Your Needs

Choosing the right OBD2 scan tool with live data depends on your specific needs and budget. Consider the following factors when making your decision:

8.1. Budget

OBD2 scan tools range in price from around $50 for basic models to several thousand dollars for professional-grade tools. Determine how much you are willing to spend and choose a tool that fits your budget.

8.2. Features

Consider the features that are important to you. Do you need advanced features like bidirectional control and ABS/SRS diagnostics, or will basic live data and code reading/clearing suffice?

8.3. Vehicle Compatibility

Ensure that the scan tool is compatible with your vehicle’s make and model. Most scan tools support a wide range of vehicles, but it is always a good idea to check compatibility before making a purchase.

8.4. User Interface

Choose a scan tool with a user-friendly interface that is easy to navigate and understand. A color display and intuitive menu system can make the diagnostic process much easier.

8.5. Updates

Ensure that the scan tool can be updated with the latest software and vehicle data. Regular updates are important for maintaining compatibility and accessing the latest features.

9. Maintaining and Updating Your OBD2 Scan Tool

To ensure that your OBD2 scan tool continues to perform accurately and reliably, it is important to maintain and update it regularly.

9.1. Software Updates

Check for software updates regularly and install them as soon as they are available. Updates often include new features, improved performance, and compatibility with the latest vehicles.

9.2. Cleaning

Keep the scan tool clean and free of dust and debris. Use a soft cloth to wipe down the screen and housing.

9.3. Storage

Store the scan tool in a safe and dry place when not in use. Avoid exposing it to extreme temperatures or moisture.

9.4. Battery Maintenance

If the scan tool uses batteries, replace them regularly to ensure proper operation. Some scan tools use rechargeable batteries, which should be charged regularly.

10. Frequently Asked Questions (FAQs) about OBD2 Scan Tools with Live Data

Here are some frequently asked questions about OBD2 scan tools with live data:

10.1. What is the difference between an OBD2 scan tool and a code reader?

An OBD2 scan tool is a more advanced diagnostic device that can read live data, perform bidirectional control, and offer enhanced diagnostics. A code reader, on the other hand, is a basic tool that can only read and clear diagnostic trouble codes (DTCs).

10.2. Can an OBD2 scan tool damage my car?

No, an OBD2 scan tool will not damage your car if used correctly. However, it is important to follow the instructions in the user manual and avoid making any changes to the vehicle’s systems without proper knowledge.

10.3. Do I need a professional scan tool or will a basic model suffice?

The type of scan tool you need depends on your specific needs and budget. If you are a professional mechanic or serious DIY enthusiast, a professional-grade scan tool with advanced features is recommended. If you are a casual DIYer, a basic model with live data and code reading/clearing capabilities may be sufficient.

10.4. How often should I use an OBD2 scan tool?

You should use an OBD2 scan tool whenever you notice a problem with your vehicle or when the check engine light comes on. Regular use of a scan tool can help you identify potential problems early and prevent costly repairs.

10.5. Can I use an OBD2 scan tool on any car?

Most OBD2 scan tools are compatible with all vehicles manufactured after 1996. However, it is always a good idea to check compatibility before making a purchase.

10.6. What is bidirectional control?

Bidirectional control is a feature that allows you to activate and test vehicle components using the scan tool. This can be useful for troubleshooting issues and verifying repairs.

10.7. What is freeze frame data?

Freeze frame data captures a snapshot of the vehicle’s data at the moment a DTC is triggered. This can provide valuable information about the conditions that caused the issue.

10.8. How do I update my OBD2 scan tool?

Most OBD2 scan tools can be updated via USB or Wi-Fi. Check the user manual for instructions on how to update your specific model.

10.9. What is the best OBD2 scan tool for beginners?

The Innova 5410 and Launch Creader VII+ are good choices for beginners due to their affordable price points and easy-to-use interfaces.

10.10. Where can I buy an OBD2 scan tool with live data?

You can buy OBD2 scan tools with live data from auto parts stores, online retailers, and tool suppliers. CAR-TOOL.EDU.VN offers a wide selection of OBD2 scan tools to meet your diagnostic needs.

Choosing the right OBD2 scan tool with live data can greatly enhance your ability to diagnose and repair vehicle issues. With the information provided in this comprehensive guide, you can make an informed decision and select the tool that best suits your needs. Remember to visit CAR-TOOL.EDU.VN for the latest products, expert advice, and resources to help you keep your vehicle running smoothly.

Are you looking for reliable and efficient automotive diagnostic tools? Contact CAR-TOOL.EDU.VN today at 456 Elm Street, Dallas, TX 75201, United States or call us on Whatsapp at +1 (641) 206-8880 for expert assistance and advice. Let us help you find the perfect OBD2 scan tool with live data to meet your needs. Visit our website CAR-TOOL.EDU.VN for more information.
