How To Use A Car Code Reader: A Comprehensive Guide

Using a car code reader is essential for diagnosing and resolving vehicle issues, and CAR-TOOL.EDU.VN is here to guide you. This guide provides a comprehensive understanding of how to use a car code reader, interpret diagnostic trouble codes (DTCs), and perform basic troubleshooting, ensuring you can effectively maintain your vehicle and address potential problems, providing automotive diagnostic tools and vehicle code lookup.

1. Understanding Car Code Readers and Their Importance

A car code reader, also known as a scan tool, is a device used to retrieve diagnostic trouble codes (DTCs) from a vehicle’s onboard computer. According to a study by the National Institute for Automotive Service Excellence (ASE), using code readers can reduce diagnostic time by up to 40%. These codes indicate malfunctions within the vehicle’s systems, such as the engine, transmission, and emissions. Understanding how to use a car code reader is crucial for both professional mechanics and vehicle owners, allowing for quicker and more accurate diagnoses.

1.1 What is a Car Code Reader?

A car code reader is a handheld device that connects to a vehicle’s onboard diagnostic (OBD) system. It reads and displays diagnostic trouble codes, which are alphanumeric codes that correspond to specific issues within the vehicle.

1.2 Why Use a Car Code Reader?

Using a car code reader offers several benefits:

• Early Detection: Identifies potential problems early, preventing costly repairs.
• Informed Decisions: Provides information to make informed decisions about repairs.
• DIY Repairs: Enables DIY enthusiasts to perform basic repairs.
• Cost Savings: Reduces the need for expensive diagnostic services at repair shops.

1.3 Types of Car Code Readers

There are several types of car code readers available:

• Basic Code Readers: These provide DTCs and allow you to clear them.
• Enhanced Code Readers: These offer additional features such as live data streaming and advanced diagnostics.
• OBD2 Scanners: These are compatible with all vehicles manufactured after 1996 and offer a wide range of diagnostic capabilities.
• Professional Scan Tools: Used by mechanics, these offer advanced features such as bidirectional control and module programming.

2. Preparing to Use a Car Code Reader

Before using a car code reader, it is important to ensure you have the right tool and understand the basics of your vehicle’s OBD system. This preparation will make the diagnostic process smoother and more effective.

2.1 Ensuring Compatibility

• Check Vehicle Year, Make, and Model: Ensure the code reader is compatible with your vehicle’s year, make, and model. Most code readers support OBD2 protocols, which are standard for vehicles manufactured after 1996 in the United States.
• Read the Code Reader Manual: Familiarize yourself with the code reader’s functions and capabilities by reading the manual. This will help you understand how to navigate the device and interpret the data it provides.

2.2 Gathering Necessary Information

• Vehicle’s Service History: Having access to your vehicle’s service history can provide valuable context for any diagnostic trouble codes that appear. Knowing recent repairs or maintenance can help you narrow down potential issues.
• Common Issues for Your Vehicle: Research common problems associated with your vehicle’s make and model. Online forums and databases like the CAR-TOOL.EDU.VN resource center can provide insights into recurring issues that may be related to the DTCs you retrieve.

2.3 Understanding the OBD2 Port

• Location of the OBD2 Port: The OBD2 port is typically located under the dashboard on the driver’s side. Refer to your vehicle’s manual if you are unsure of its exact location.
• Ensuring a Clean Connection: Before connecting the code reader, ensure the OBD2 port is clean and free from obstructions. Use a small brush or compressed air to remove any dirt or debris that may interfere with the connection.

3. Step-by-Step Guide on How to Use a Car Code Reader

Using a car code reader involves a few simple steps. This section provides a detailed guide on how to connect the reader, retrieve codes, and interpret the results.

3.1 Connecting the Code Reader

1. Turn Off the Ignition: Ensure the vehicle’s ignition is turned off before connecting the code reader.
2. Locate the OBD2 Port: Find the OBD2 port, typically located under the dashboard on the driver’s side.
3. Plug in the Code Reader: Firmly plug the code reader into the OBD2 port. You should hear or feel a click to ensure a secure connection.

3.2 Retrieving Diagnostic Trouble Codes (DTCs)

1. Turn the Ignition to the “On” Position: Turn the ignition to the “On” position without starting the engine. This provides power to the vehicle’s computer.
2. Power On the Code Reader: Turn on the code reader. It should power up automatically once connected to the OBD2 port.
3. Navigate to the “Read Codes” or “Diagnostic” Function: Use the code reader’s menu to navigate to the “Read Codes” or “Diagnostic” function.
4. Wait for the Code Reader to Retrieve Codes: The code reader will communicate with the vehicle’s computer and retrieve any stored DTCs. This process may take a few seconds to a minute.

3.3 Interpreting the Codes

1. Record the Codes: Write down each DTC that appears on the code reader’s screen.
2. Look Up the Codes: Use the code reader’s built-in database or an online resource like CAR-TOOL.EDU.VN to look up the meaning of each code.
3. Understand the Severity of the Codes: Determine the severity of each code. Some codes may indicate minor issues, while others may indicate critical problems that require immediate attention.

3.4 Clearing the Codes (If Necessary)

1. Navigate to the “Clear Codes” Function: Use the code reader’s menu to navigate to the “Clear Codes” or “Erase Codes” function.
2. Confirm the Action: Follow the prompts to confirm that you want to clear the codes.
3. Verify the Codes are Cleared: After clearing the codes, turn off the ignition for a few minutes, then turn it back on and re-read the codes to ensure they have been cleared.

Car Service Manager or Mechanic Uses a Tablet Computer with a Futuristic Interactive Diagnostics Software. Specialist Inspecting the Vehicle in Order to Find Broken Components In the Engine Bay.

4. Understanding Diagnostic Trouble Codes (DTCs)

Diagnostic Trouble Codes (DTCs) are alphanumeric codes used to identify specific problems in a vehicle’s systems. Understanding these codes is essential for effective troubleshooting and repair.

4.1 Decoding DTC Structure

DTCs follow a standardized format, making them easier to interpret. The structure typically consists of five characters:

• First Character: Indicates the system affected (e.g., P for Powertrain, B for Body, C for Chassis, U for Network).
• Second Character: Indicates whether the code is generic (0) or manufacturer-specific (1).
• Third Character: Indicates the specific subsystem (e.g., fuel system, ignition system).
• Fourth and Fifth Characters: Specify the particular fault within the subsystem.

4.2 Common DTC Categories

• P0xxx (Powertrain – Generic): These codes relate to the engine, transmission, and related components.
• P1xxx (Powertrain – Manufacturer Specific): These codes are specific to the vehicle manufacturer and relate to the engine and transmission.
• Bxxxx (Body): These codes relate to the body of the vehicle, including components like airbags, power windows, and locks.
• Cxxxx (Chassis): These codes relate to the chassis of the vehicle, including components like the antilock braking system (ABS) and suspension.
• Uxxxx (Network): These codes relate to the vehicle’s communication network.

4.3 Examples of Common DTCs and Their Meanings

4.4 Using Online Resources for Code Lookup

• CAR-TOOL.EDU.VN Resource Center: Utilize CAR-TOOL.EDU.VN’s resource center to look up DTCs and access detailed information about their meanings, potential causes, and troubleshooting steps.
• Other Reliable Websites: Consult reputable automotive websites and forums for additional information and insights on DTCs.

5. Basic Troubleshooting Techniques

After retrieving and interpreting DTCs, the next step is to perform basic troubleshooting to identify the root cause of the problem. This section provides guidance on how to approach common issues.

5.1 Visual Inspection

• Check for Obvious Issues: Begin with a visual inspection of the affected components. Look for obvious signs of damage, such as broken wires, loose connections, or leaks.
• Inspect Hoses and Connections: Examine hoses and connections for cracks, leaks, or disconnections. These can often be the source of vacuum leaks or other issues.

5.2 Testing Sensors and Components

• Using a Multimeter: Use a multimeter to test the voltage and resistance of sensors and components. Refer to the vehicle’s service manual for the correct values.
• Checking Sensor Signals: Some code readers can display live data from sensors. Use this feature to check if sensors are providing accurate readings.

5.3 Common Problem Areas

• Vacuum Leaks: Vacuum leaks can cause a variety of issues, including poor engine performance and incorrect sensor readings. Check for leaks using a smoke machine or by spraying carburetor cleaner around vacuum lines and intake manifolds.
• Electrical Connections: Poor electrical connections can cause intermittent problems and incorrect sensor readings. Clean and tighten connections as needed.
• Fuel System: Issues with the fuel system can cause a variety of DTCs. Check fuel pressure, fuel injectors, and fuel filters.

6. Advanced Diagnostic Procedures

For more complex issues, advanced diagnostic procedures may be necessary. This section provides an overview of some advanced techniques.

6.1 Using Live Data

• Monitoring Sensor Readings in Real-Time: Use the code reader’s live data feature to monitor sensor readings in real-time. This can help you identify intermittent problems or sensors that are not functioning correctly.
• Analyzing Data Patterns: Look for patterns in the data that may indicate a problem. For example, a faulty oxygen sensor may show erratic readings or a lack of response to changes in engine conditions.

6.2 Performing Actuator Tests

• Activating Components with the Scan Tool: Some scan tools can perform actuator tests, which allow you to activate specific components, such as fuel injectors or solenoids, to see if they are functioning correctly.
• Verifying Component Functionality: Use actuator tests to verify that components are responding to commands from the vehicle’s computer.

6.3 Conducting Compression Tests

• Checking Cylinder Compression: Perform a compression test to check the health of the engine’s cylinders. Low compression can indicate worn piston rings, damaged valves, or a blown head gasket.
• Interpreting Compression Results: Compare the compression readings for each cylinder to the vehicle’s specifications. Significant differences can indicate internal engine damage.

7. Maintaining Your Car Code Reader

Proper maintenance of your car code reader ensures it remains reliable and accurate. This section provides tips on how to care for your device.

7.1 Keeping the Device Clean

• Cleaning the Screen and Buttons: Regularly clean the screen and buttons with a soft, lint-free cloth. Avoid using harsh chemicals or abrasive cleaners.
• Protecting from Dust and Moisture: Store the code reader in a clean, dry place to protect it from dust and moisture.

7.2 Updating the Software

• Checking for Updates Regularly: Check the manufacturer’s website for software updates regularly.
• Installing Updates to Ensure Accuracy: Install updates to ensure the code reader has the latest diagnostic information and capabilities.

7.3 Storing the Code Reader Properly

• Using a Protective Case: Store the code reader in a protective case to prevent damage.
• Avoiding Extreme Temperatures: Avoid storing the code reader in extreme temperatures, which can damage the device.

8. Choosing the Right Car Code Reader

Selecting the right car code reader depends on your needs and budget. This section provides guidance on how to choose the best tool for your situation.

8.1 Considering Your Needs

• DIY vs. Professional Use: Determine whether you need a code reader for DIY repairs or professional use. Professional scan tools offer more advanced features but are also more expensive.
• Vehicle Compatibility: Ensure the code reader is compatible with your vehicle’s make, model, and year.

8.2 Key Features to Look For

• Ease of Use: Choose a code reader that is easy to use, with a clear display and intuitive menu.
• Code Definitions: Ensure the code reader provides detailed code definitions and troubleshooting information.
• Live Data: Look for a code reader that offers live data streaming, allowing you to monitor sensor readings in real-time.
• Update Capability: Choose a code reader that can be updated with the latest diagnostic information.

8.3 Top Car Code Reader Brands

• Actron: Known for their affordable and reliable code readers.
• Innova: Offers a wide range of code readers, from basic models to advanced scan tools.
• Autel: Specializes in professional-grade scan tools with advanced features.
• OBDLink: Offers high-quality OBD2 adapters and software for advanced diagnostics.

9. Safety Precautions When Using a Car Code Reader

When using a car code reader, it is important to follow safety precautions to protect yourself and your vehicle.

9.1 Working in a Safe Environment

• Well-Ventilated Area: Work in a well-ventilated area to avoid exposure to harmful fumes.
• Proper Lighting: Ensure you have proper lighting to see what you are doing.

9.2 Handling Electrical Components

• Disconnecting the Battery (If Necessary): Disconnect the battery before working on electrical components to prevent electrical shock.
• Using Proper Tools: Use proper tools to avoid damaging electrical components.

9.3 Following Manufacturer’s Instructions

• Reading the Vehicle’s Service Manual: Refer to the vehicle’s service manual for specific safety instructions and procedures.
• Following Code Reader Instructions: Follow the code reader’s instructions carefully to avoid damaging the device or the vehicle.

10. Benefits of Using CAR-TOOL.EDU.VN for Automotive Diagnostics

CAR-TOOL.EDU.VN is your trusted resource for automotive diagnostics, providing comprehensive information and tools to help you maintain your vehicle.

10.1 Access to Detailed Information

• Comprehensive DTC Database: Access a comprehensive database of DTCs with detailed information on their meanings, potential causes, and troubleshooting steps.
• Technical Articles and Guides: Read technical articles and guides on various automotive topics, providing valuable insights and tips.

10.2 Expert Advice and Support

• Consultation with Automotive Experts: Get personalized advice and support from experienced automotive experts.
• Community Forums: Participate in community forums to share your experiences and learn from other vehicle owners and mechanics.

10.3 Reliable Products and Services

• Recommended Code Readers and Tools: Find recommended code readers and tools that meet your needs and budget.
• Trusted Suppliers and Repair Shops: Access a list of trusted suppliers and repair shops that offer quality products and services.

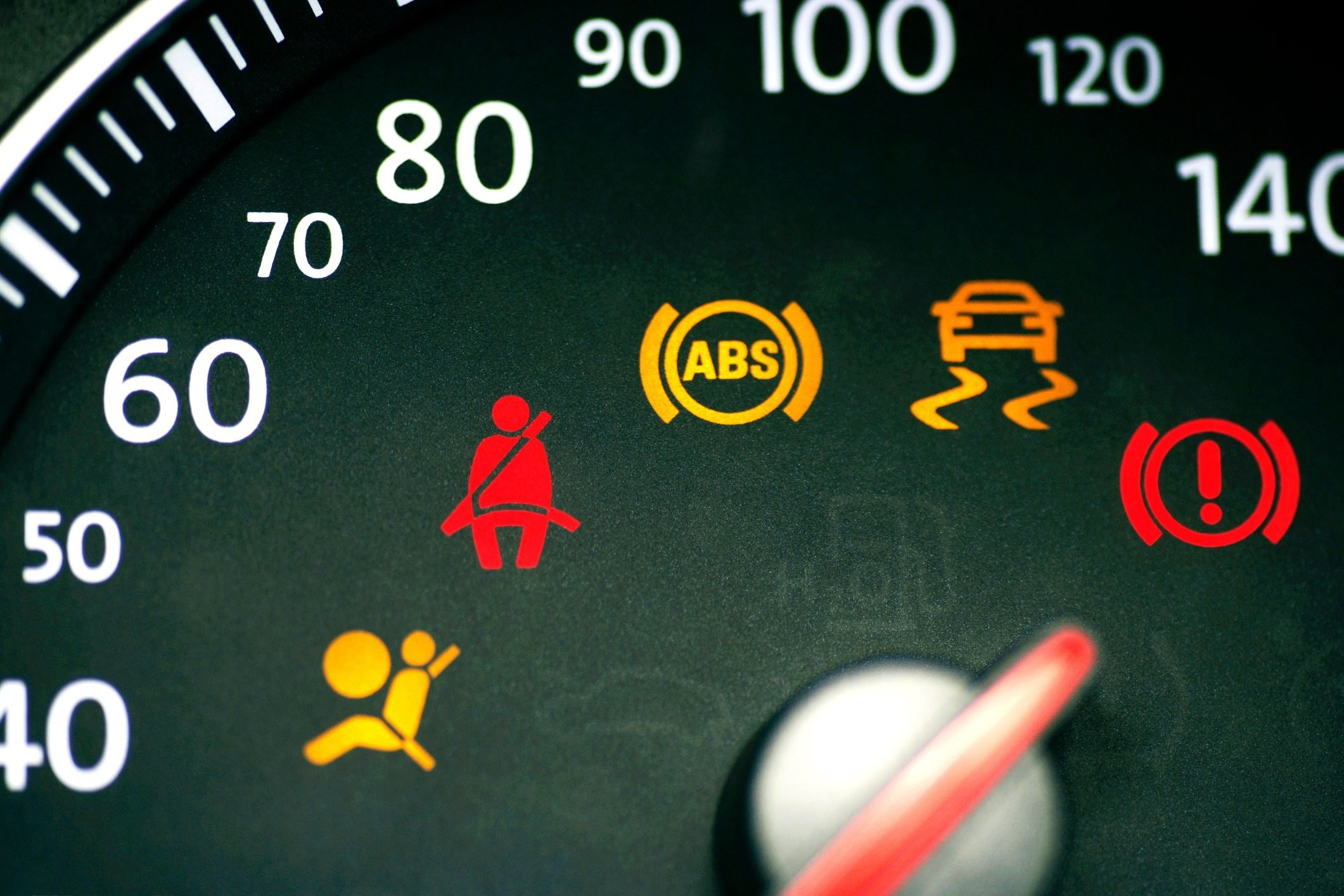

car dashboard lights on indicating car troubles

11. Real-World Examples of How a Car Code Reader Can Save You Money

Using a car code reader can save you money by allowing you to diagnose and fix minor issues yourself, avoiding costly trips to the mechanic.

11.1 Identifying a Faulty Oxygen Sensor

• Scenario: Your vehicle’s check engine light comes on, and you notice a decrease in fuel economy.
• Using a Code Reader: You use a car code reader and retrieve a P0171 code, indicating a lean fuel mixture.
• Troubleshooting: After checking for vacuum leaks, you suspect a faulty oxygen sensor.
• Solution: You replace the oxygen sensor yourself, saving hundreds of dollars in labor costs.

11.2 Diagnosing a Misfire

• Scenario: Your vehicle starts running rough, and the check engine light flashes.
• Using a Code Reader: You use a car code reader and retrieve a P0300 code, indicating a random cylinder misfire.
• Troubleshooting: You check the spark plugs, ignition coils, and fuel injectors.
• Solution: You find a faulty spark plug and replace it, resolving the misfire and preventing further engine damage.

11.3 Catching an Evaporative Emission System Leak

• Scenario: Your vehicle’s check engine light comes on, but you don’t notice any performance issues.
• Using a Code Reader: You use a car code reader and retrieve a P0442 code, indicating a small evaporative emission system leak.
• Troubleshooting: You check the fuel cap and find it loose.
• Solution: You tighten the fuel cap, clear the code, and the check engine light stays off, preventing potential fines during your next inspection.

12. Common Mistakes to Avoid When Using a Car Code Reader

Avoiding common mistakes when using a car code reader ensures accurate diagnoses and prevents further damage to your vehicle.

12.1 Not Ensuring Compatibility

• Mistake: Using a code reader that is not compatible with your vehicle’s make, model, and year.
• Solution: Always check the code reader’s compatibility list before purchasing or using it.

12.2 Ignoring Code Definitions

• Mistake: Clearing codes without understanding their meaning.
• Solution: Always look up the code definitions and understand the potential causes before clearing codes.

12.3 Neglecting Visual Inspection

• Mistake: Relying solely on the code reader without performing a visual inspection.
• Solution: Always perform a visual inspection to check for obvious issues before relying on the code reader.

12.4 Not Following Safety Precautions

• Mistake: Not following safety precautions when working on your vehicle.
• Solution: Always work in a safe environment, disconnect the battery when necessary, and follow manufacturer’s instructions.

13. Frequently Asked Questions (FAQs) About Car Code Readers

13.1 What are vehicle diagnostic trouble codes (DTCs)?

Diagnostic trouble codes tell you the systems or parts that malfunctioned or failed, causing the check engine light to come on. Codes display as a string of letters and numbers you may need to look up online to “decode.” Although using a code reader or scan tool sounds simple, it’s doesn’t always precisely identify the issue. Armed with this information, you can decide whether to fix the problem yourself or take your vehicle to a pro.

13.2 Can you find engine codes without a scanner?

Maybe. Depending on the make, model, and year, cycling the ignition key on and off three or five times will display DTCs if the vehicle has a multi-display unit. On some Toyota’s, codes can be accessed through the radio display. Never “jumper” across the data port pins with a paper clip to read codes. All you’ll do is damage the terminals, making it impossible to use a code reader in the future.

13.3 How do you clear engine codes?

After you fix the problem causing the codes and check engine light to light up, use the code reader to clear the codes and check the “readiness monitors” status. A scan tool or code reader cannot reset readiness monitors. Or disconnect the battery for 10 minutes. Remove the negative/black (-) cable first, then the positive/red (+). Follow all safety steps when working on or near a battery, including wrapping the positive cable terminal/end with tape to prevent a short circuit.

13.4 Where can I get vehicle diagnostic trouble codes checked for free?

Many local and national auto parts stores and some auto repair shops offer free code checks. If you just need the codes checked, there should only be a minimal or no fee charged, especially if you’re a loyal customer. Ask your neighbors as someone might have a code reader they’re willing to share.

13.5 What are the most common engine codes, and what do they mean?

The most common engine codes include P0171 (System Too Lean, Bank 1), P0300 (Random/Multiple Cylinder Misfire Detected), and P0420 (Catalyst System Efficiency Below Threshold, Bank 1). These codes can indicate a variety of issues, from vacuum leaks to faulty sensors.

13.6 How do I know if my car code reader needs to be updated?

Check the manufacturer’s website for software updates regularly. Installing updates ensures the code reader has the latest diagnostic information and capabilities.

13.7 Can I use a car code reader on any vehicle?

Most code readers support OBD2 protocols, which are standard for vehicles manufactured after 1996 in the United States. However, it’s essential to check the code reader’s compatibility list to ensure it works with your vehicle’s make, model, and year.

13.8 What should I do if I can’t find the OBD2 port in my car?

Refer to your vehicle’s manual for the exact location of the OBD2 port. It is typically located under the dashboard on the driver’s side.

13.9 Is it safe to drive with the check engine light on?

It depends on the nature of the problem. If the check engine light is flashing, it indicates a serious issue that requires immediate attention. If the light is solid, it is generally safe to drive, but you should still have the vehicle diagnosed as soon as possible.

13.10 How often should I check my car for diagnostic trouble codes?

You should check your car for diagnostic trouble codes whenever the check engine light comes on or if you notice any performance issues. Regular checks can help you identify potential problems early and prevent costly repairs.

14. Staying Updated with the Latest Automotive Diagnostic Technologies

The field of automotive diagnostics is constantly evolving, with new technologies and techniques emerging regularly. Staying updated with these advancements is crucial for effective vehicle maintenance.

14.1 Following Industry News and Trends

• Subscribing to Automotive Publications: Subscribe to reputable automotive publications and blogs to stay informed about the latest industry news and trends.
• Attending Trade Shows and Conferences: Attend trade shows and conferences to learn about new diagnostic technologies and network with industry professionals.

14.2 Continuous Learning and Training

• Taking Automotive Diagnostic Courses: Enroll in automotive diagnostic courses to enhance your knowledge and skills.
• Earning Certifications: Obtain certifications from organizations like ASE to demonstrate your expertise in automotive diagnostics.

14.3 Leveraging Online Resources

• Following Automotive Experts on Social Media: Follow automotive experts on social media platforms like YouTube, LinkedIn, and Twitter to stay updated with their latest insights and tips.
• Participating in Online Forums and Communities: Participate in online forums and communities to share your experiences and learn from other vehicle owners and mechanics.

15. Contact CAR-TOOL.EDU.VN for Expert Assistance

If you need assistance with automotive diagnostics or have questions about using a car code reader, contact CAR-TOOL.EDU.VN for expert help.

15.1 How to Reach Us

• Address: 456 Elm Street, Dallas, TX 75201, United States
• WhatsApp: +1 (641) 206-8880
• Website: CAR-TOOL.EDU.VN

15.2 Services We Offer

• Expert Consultation: Get personalized advice and support from experienced automotive experts.
• Product Recommendations: Find recommended code readers and tools that meet your needs and budget.
• Troubleshooting Assistance: Receive troubleshooting assistance for diagnosing and resolving vehicle issues.

By following this comprehensive guide and utilizing the resources available at CAR-TOOL.EDU.VN, you can effectively use a car code reader to diagnose and maintain your vehicle, saving time and money on costly repairs. Contact us today to learn more and get the expert assistance you need.

Ready to take control of your vehicle’s health? Contact CAR-TOOL.EDU.VN now via Whatsapp at +1 (641) 206-8880 for a consultation and expert advice on choosing the right car code reader and automotive tools for your needs. Don’t wait until a small issue becomes a major problem – let us help you stay informed and proactive about your car’s maintenance. Reach out today and experience the peace of mind that comes with being prepared.
