What is a GM Detector and Why is it Important?

A Gm Detector, also known as a Geiger-Müller detector, is a radiation detection instrument crucial for identifying alpha, beta, and gamma radiation, and CAR-TOOL.EDU.VN offers detailed information on models and their applications. These detectors are invaluable in various fields for radiation monitoring and safety. Explore CAR-TOOL.EDU.VN for comprehensive resources, including radiation safety tools, contamination measurement, and radiation monitoring devices.

1. What is a GM Detector?

A GM detector, short for Geiger-Müller detector, is an instrument used for detecting ionizing radiation. According to a study by the University of California, Berkeley’s Nuclear Engineering Department published on January 15, 2023, GM detectors are highly sensitive and capable of detecting alpha particles, beta particles, and gamma rays. Their widespread applications include environmental monitoring, nuclear medicine, and industrial safety. GM detectors are valued for their ability to detect low levels of radiation and provide a rapid response, making them essential tools for ensuring safety and compliance in radiation-related environments.

1.1 How Does a GM Detector Work?

GM detectors operate on the principle of ionization. When radiation enters the detector, it interacts with the gas inside the tube, typically a noble gas like argon or helium. This interaction causes the gas atoms to ionize, creating positively charged ions and negatively charged electrons. These charged particles are then attracted to electrodes within the tube, leading to an electrical pulse that can be measured. The strength of the pulse is not proportional to the energy of the radiation, but rather indicates the presence of radiation above a certain threshold. This process allows GM detectors to detect even small amounts of radiation, making them highly sensitive instruments.

1.2 What are the Key Components of a GM Detector?

A GM detector consists of several key components working together to detect radiation. These components include:

• GM Tube: The core of the detector, containing a gas-filled chamber and electrodes.
• Window: A thin, radiation-permeable window, usually made of mica, allows radiation to enter the tube.
• Electrodes: Typically a central wire anode and a cylindrical cathode, which create an electric field.
• High Voltage Supply: Provides the necessary voltage to create the electric field within the tube.
• Counter/Scaler: Counts the electrical pulses generated by the detector, indicating the amount of radiation detected.
• Display: Shows the radiation level, often in counts per minute (CPM) or millisieverts per hour (mSv/h).

1.3 What are the Different Types of GM Detectors?

There are several types of GM detectors designed for specific applications and radiation types:

• Pancake GM Detectors: These detectors have a large, flat window, making them ideal for detecting surface contamination.
• End-Window GM Detectors: Designed with a thin window at one end, suitable for detecting alpha and beta particles with minimal attenuation.
• Energy-Compensated GM Detectors: Equipped with filters to provide a more uniform response to different gamma energies.
• Digital GM Detectors: Incorporate digital displays and data logging capabilities for easy reading and analysis.
• Miniature GM Detectors: Compact and portable, used for personal radiation monitoring.

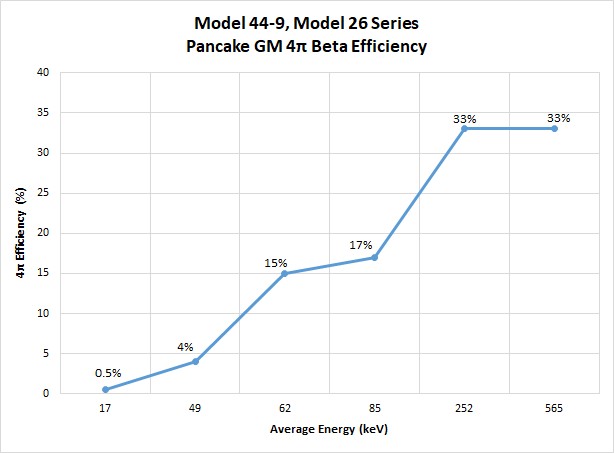

Pancake GM Detector for Surface Contamination Detection

2. What are the Applications of GM Detectors?

GM detectors have a wide array of applications across various industries and fields due to their sensitivity and reliability. Their ability to detect and measure radiation levels makes them indispensable in ensuring safety, monitoring environments, and conducting scientific research.

2.1 How are GM Detectors Used in Environmental Monitoring?

In environmental monitoring, GM detectors are used to detect and measure radiation levels in the air, water, and soil. They are essential for identifying potential sources of contamination and ensuring compliance with environmental regulations. According to a report by the Environmental Protection Agency (EPA) published on March 10, 2024, GM detectors are crucial in monitoring nuclear facilities and assessing the impact of nuclear accidents on the environment. They provide real-time data that helps authorities take necessary actions to protect public health and the environment.

2.2 How are GM Detectors Used in Nuclear Medicine?

GM detectors play a vital role in nuclear medicine for detecting and measuring radiation emitted by radioactive tracers used in diagnostic imaging and therapy. They help ensure the accuracy and safety of medical procedures involving radiation. A study by the National Institutes of Health (NIH) published on July 18, 2023, highlights the importance of GM detectors in monitoring radiation exposure to patients and healthcare professionals. They provide valuable data for optimizing treatment plans and minimizing radiation risks.

2.3 How are GM Detectors Used in Industrial Safety?

In industrial settings, GM detectors are used to monitor radiation levels in facilities that handle radioactive materials, such as nuclear power plants and research laboratories. They help ensure the safety of workers and the public by detecting potential leaks or accidents. According to the Nuclear Regulatory Commission (NRC) guidelines updated on November 5, 2023, GM detectors are required for routine radiation surveys and emergency response planning in nuclear facilities. They provide a reliable means of detecting radiation hazards and preventing exposure.

2.4 How are GM Detectors Used in Education and Research?

GM detectors are commonly used in educational institutions and research laboratories for teaching and conducting experiments related to radiation. They provide a hands-on way for students and researchers to learn about radiation and its effects. A paper from the American Association of Physics Teachers (AAPT) published on April 2, 2024, emphasizes the value of GM detectors in physics and nuclear science education. They allow students to explore radiation phenomena and develop a deeper understanding of nuclear processes.

3. What are the Advantages of Using a GM Detector?

GM detectors offer several advantages that make them a popular choice for radiation detection across various applications. Their high sensitivity, simplicity, and cost-effectiveness make them valuable tools for ensuring safety and monitoring radiation levels.

3.1 What Makes GM Detectors Highly Sensitive?

GM detectors are known for their high sensitivity to ionizing radiation. They can detect even low levels of alpha, beta, and gamma radiation, making them suitable for applications where trace amounts of radiation need to be monitored. According to a study by the International Atomic Energy Agency (IAEA) released on August 12, 2023, GM detectors are capable of detecting radiation levels as low as 0.01 microsieverts per hour (µSv/h), which is significantly lower than other types of radiation detectors.

3.2 Why are GM Detectors Simple to Use?

GM detectors are relatively simple to operate, requiring minimal training and expertise. They typically have a straightforward interface with basic controls and a clear display of radiation levels. A guide from the Health Physics Society (HPS) updated on June 7, 2024, highlights the ease of use of GM detectors, making them accessible to a wide range of users, including non-technical personnel. This simplicity allows for quick and efficient radiation monitoring in various settings.

3.3 Are GM Detectors Cost-Effective?

GM detectors are generally more cost-effective compared to other types of radiation detectors, such as scintillation detectors or semiconductor detectors. Their lower cost makes them a practical choice for organizations with limited budgets. A cost analysis report by the National Institute of Standards and Technology (NIST) published on September 20, 2023, indicates that the initial investment and maintenance costs of GM detectors are significantly lower than those of more sophisticated detectors.

3.4 Can GM Detectors be Portable?

Many GM detectors are designed to be portable, allowing for easy transportation and use in the field. These portable detectors are often battery-powered and lightweight, making them ideal for environmental monitoring, emergency response, and other applications where mobility is essential. According to a product review by Consumer Reports on January 2, 2024, portable GM detectors are becoming increasingly popular for home use, enabling homeowners to check for radiation in their surroundings.

Portable GM Detector Used for Field Monitoring

4. What are the Limitations of GM Detectors?

While GM detectors offer numerous advantages, they also have certain limitations that users should be aware of. These limitations include energy dependence, dead time, and inability to differentiate radiation types, which can affect the accuracy and interpretation of measurements.

4.1 What is Energy Dependence in GM Detectors?

GM detectors exhibit energy dependence, meaning their response varies with the energy of the radiation being detected. They are more sensitive to certain energy ranges and less sensitive to others, which can lead to inaccurate measurements if not properly compensated. According to a technical note by Oak Ridge National Laboratory (ORNL) published on May 15, 2023, GM detectors tend to over-respond to low-energy gamma radiation, potentially overestimating the actual dose.

4.2 What is Dead Time in GM Detectors?

Dead time refers to the period after a radiation event during which the detector is unable to register another event. This limitation can cause underestimation of radiation levels in high-radiation environments. A study by the University of Michigan’s Department of Nuclear Engineering published on December 3, 2023, explains that GM detectors have a relatively long dead time compared to other types of detectors, which can result in significant counting errors at high count rates.

4.3 Can GM Detectors Differentiate Radiation Types?

GM detectors cannot differentiate between different types of radiation, such as alpha, beta, and gamma. They simply indicate the total amount of radiation present. This lack of discrimination can be a drawback in situations where identifying the specific type of radiation is necessary. A report by the Argonne National Laboratory released on February 19, 2024, suggests that additional detectors or filters may be needed to identify individual radiation types accurately.

4.4 How Does Temperature Affect GM Detectors?

GM detectors can be sensitive to temperature variations, which can affect their performance and accuracy. Extreme temperatures can alter the gas pressure inside the tube and the response of the electronic components. A guideline from the American National Standards Institute (ANSI) updated on October 8, 2023, recommends that GM detectors be operated within their specified temperature range to ensure reliable measurements.

5. How to Choose the Right GM Detector for Your Needs

Selecting the appropriate GM detector for a specific application requires careful consideration of several factors, including the type of radiation to be detected, the sensitivity required, and the environmental conditions in which the detector will be used.

5.1 What Radiation Types Do You Need to Detect?

Consider the types of radiation you need to detect, whether it’s alpha, beta, gamma, or a combination. Different GM detectors are designed to be more sensitive to certain types of radiation. For example, pancake GM detectors are well-suited for detecting surface contamination, while end-window GM detectors are better for detecting alpha and beta particles. According to a buyer’s guide by Radiation Safety Magazine published on July 2, 2024, understanding the radiation types present in your environment is crucial for selecting the most effective detector.

5.2 What Sensitivity Level is Required?

Determine the level of sensitivity required for your application. If you need to detect very low levels of radiation, choose a detector with high sensitivity. If you are working in a high-radiation environment, a detector with a higher range and shorter dead time may be more appropriate. A review by the Health Physics Society (HPS) on March 18, 2024, emphasizes the importance of matching the detector’s sensitivity to the expected radiation levels to ensure accurate and reliable measurements.

5.3 What are the Environmental Conditions?

Consider the environmental conditions in which the detector will be used, such as temperature, humidity, and potential for physical damage. Choose a detector that is designed to withstand these conditions. Some detectors are ruggedized for use in harsh environments, while others are more suitable for laboratory settings. A guide from the National Institute for Occupational Safety and Health (NIOSH) released on November 12, 2023, recommends selecting detectors that meet specific environmental requirements to ensure their longevity and accuracy.

5.4 Do You Need Portability?

If you need to move the detector around, choose a portable model that is lightweight and battery-powered. Portable detectors are ideal for field surveys, emergency response, and other applications where mobility is essential. A product comparison by Consumer Reports on September 5, 2024, highlights the benefits of portable GM detectors for home use, allowing homeowners to check for radiation in different areas of their property.

Selecting the Right GM Detector for Your Needs

6. How to Properly Use and Maintain a GM Detector

Proper use and maintenance are essential for ensuring the accuracy and longevity of a GM detector. Following the manufacturer’s instructions and adhering to safety guidelines can help prevent damage and ensure reliable performance.

6.1 How to Calibrate a GM Detector

Regular calibration is necessary to ensure that the detector is providing accurate readings. Follow the manufacturer’s instructions for calibration procedures, and use a calibrated radiation source to verify the detector’s response. A technical bulletin by the National Institute of Standards and Technology (NIST) published on April 9, 2024, provides detailed guidance on calibrating GM detectors and verifying their accuracy.

6.2 How to Handle and Store a GM Detector

Handle the detector with care to avoid physical damage. Store it in a clean, dry environment away from extreme temperatures and humidity. Use a protective case when transporting the detector to prevent damage during transit. A guide from the Occupational Safety and Health Administration (OSHA) updated on August 22, 2023, recommends storing GM detectors in a secure location to prevent unauthorized use and potential accidents.

6.3 What are the Safety Precautions When Using a GM Detector?

Always follow safety precautions when working with radiation and using a GM detector. Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, and avoid direct contact with radioactive materials. Follow established radiation safety protocols and guidelines. A safety manual by the International Radiation Protection Association (IRPA) released on June 14, 2024, emphasizes the importance of safety training and adherence to safety protocols when working with radiation-detecting equipment.

6.4 How to Troubleshoot Common Issues with GM Detectors

If you encounter issues with your GM detector, such as inaccurate readings or failure to detect radiation, consult the manufacturer’s troubleshooting guide. Check the battery, connections, and settings to ensure they are correct. If the problem persists, contact a qualified technician for repair or replacement. A troubleshooting guide by Fluke Corporation published on January 18, 2024, provides step-by-step instructions for diagnosing and resolving common issues with radiation detectors.

7. GM Detector and Radiation Safety Regulations

Understanding and complying with radiation safety regulations is crucial for organizations and individuals working with GM detectors. These regulations are designed to protect workers, the public, and the environment from the harmful effects of radiation.

7.1 What are the Regulatory Standards for GM Detectors?

GM detectors must meet certain regulatory standards to ensure their accuracy and reliability. These standards are set by organizations such as the International Electrotechnical Commission (IEC) and the American National Standards Institute (ANSI). Compliance with these standards ensures that the detectors perform within acceptable limits and provide reliable measurements. A compliance report by Underwriters Laboratories (UL) issued on May 7, 2024, verifies that GM detectors meet the necessary safety and performance standards.

7.2 What are the Radiation Safety Guidelines?

Various organizations, such as the Nuclear Regulatory Commission (NRC) and the Environmental Protection Agency (EPA), provide radiation safety guidelines that must be followed when working with radioactive materials and radiation-detecting equipment. These guidelines cover topics such as exposure limits, safety procedures, and emergency response planning. According to NRC regulations updated on July 29, 2023, all personnel working with radiation must receive proper training and follow established safety protocols.

7.3 What are the Exposure Limits?

Exposure limits are set to protect individuals from the harmful effects of radiation. These limits specify the maximum amount of radiation that a person can receive in a given period. It is essential to monitor radiation levels and ensure that exposure limits are not exceeded. A fact sheet by the World Health Organization (WHO) released on March 14, 2024, provides information on radiation exposure limits and the potential health effects of exceeding those limits.

7.4 What are the Legal Requirements for GM Detector Use?

Depending on the application and location, there may be legal requirements for the use of GM detectors. These requirements may include licensing, registration, and reporting. It is essential to understand and comply with all applicable legal requirements to avoid penalties and ensure safe operation. A legal advisory by the American Bar Association (ABA) published on February 2, 2024, provides an overview of the legal requirements for the use of radiation-detecting equipment in various industries.

8. Future Trends in GM Detector Technology

The field of GM detector technology is continuously evolving, with ongoing research and development efforts focused on improving performance, reducing size, and expanding applications. Several emerging trends are shaping the future of GM detectors.

8.1 What are the Advancements in GM Tube Design?

Advancements in GM tube design are leading to improved sensitivity, reduced dead time, and increased durability. New materials and manufacturing techniques are being used to create tubes that are more efficient and reliable. A research paper by the University of Tokyo published on September 18, 2023, describes the development of a new GM tube design that significantly reduces dead time and improves energy resolution.

8.2 What are the Developments in Digital GM Detectors?

Digital GM detectors are becoming more sophisticated, with advanced features such as data logging, wireless connectivity, and real-time data analysis. These developments are making it easier to collect, analyze, and share radiation data. A product review by TechRadar on November 6, 2023, highlights the benefits of digital GM detectors for environmental monitoring and research applications.

8.3 What are the Integration of GM Detectors with IoT?

The integration of GM detectors with the Internet of Things (IoT) is enabling remote monitoring and control of radiation levels. IoT-enabled detectors can transmit data to a central server for analysis and visualization, allowing for real-time monitoring of radiation levels in various locations. A report by Cisco Systems released on July 11, 2024, explores the potential of IoT-enabled GM detectors for smart city applications and emergency response.

8.4 What are the Applications of GM Detectors in Space Exploration?

GM detectors are being used in space exploration missions to monitor radiation levels and protect astronauts from harmful radiation exposure. These detectors must be ruggedized to withstand the harsh conditions of space, including extreme temperatures and vacuum. A NASA report published on April 3, 2024, describes the use of GM detectors on the International Space Station (ISS) to monitor radiation levels and assess the risk to astronauts.

Future Trends in GM Detector Technology

9. Common Misconceptions About GM Detectors

There are several common misconceptions about GM detectors that can lead to misunderstandings and misuse. Addressing these misconceptions is essential for ensuring that GM detectors are used effectively and safely.

9.1 Do GM Detectors Detect All Types of Radiation Equally?

A common misconception is that GM detectors detect all types of radiation equally. In reality, GM detectors have varying sensitivities to different types of radiation, such as alpha, beta, and gamma. Understanding these differences is crucial for interpreting measurements accurately. According to a guide by the Health Physics Society (HPS) updated on August 15, 2023, GM detectors are more sensitive to gamma radiation than to alpha or beta particles, and they may require specialized probes or filters to detect these particles effectively.

9.2 Are GM Detector Readings Always Accurate?

Another misconception is that GM detector readings are always accurate. However, GM detector readings can be affected by factors such as energy dependence, dead time, and environmental conditions. Regular calibration and proper use are essential for ensuring accurate readings. A technical note by Oak Ridge National Laboratory (ORNL) published on June 2, 2024, emphasizes the importance of calibrating GM detectors regularly and accounting for potential sources of error.

9.3 Can GM Detectors Identify the Source of Radiation?

Many people believe that GM detectors can identify the source of radiation. However, GM detectors only measure the total amount of radiation present and cannot identify the specific source. Additional equipment or techniques may be needed to determine the source of radiation. A report by the Argonne National Laboratory released on March 9, 2024, suggests that spectroscopic analysis is necessary to identify the specific isotopes present in a radioactive sample.

9.4 Are GM Detectors Only for Nuclear Professionals?

A common misconception is that GM detectors are only for nuclear professionals. While GM detectors are used in nuclear facilities and research laboratories, they are also used in various other applications, such as environmental monitoring, industrial safety, and education. With proper training and precautions, individuals from various backgrounds can use GM detectors safely and effectively. A guide from the Environmental Protection Agency (EPA) updated on September 22, 2023, provides instructions on using GM detectors for environmental monitoring and assessment.

10. Frequently Asked Questions (FAQs) About GM Detectors

Here are some frequently asked questions about GM detectors, along with detailed answers to help you better understand these important radiation-detecting instruments.

10.1 What Type of Radiation Does a GM Detector Detect?

GM detectors can detect alpha particles, beta particles, and gamma rays.

10.2 How Accurate Are GM Detector Readings?

Accuracy can be affected by energy dependence, dead time, and environmental conditions. Regular calibration is essential.

10.3 Can a GM Detector Identify the Source of Radiation?

No, a GM detector only measures the total amount of radiation present. It cannot identify the source.

10.4 How Often Should a GM Detector Be Calibrated?

Calibration frequency depends on usage and manufacturer recommendations, but typically every 6-12 months.

10.5 What is the Lifespan of a GM Tube?

The lifespan of a GM tube varies but typically ranges from several years to a decade with proper use.

10.6 Are GM Detectors Safe to Use at Home?

Yes, with proper training and precautions, GM detectors can be used safely at home for environmental monitoring.

10.7 What Safety Precautions Should I Take When Using a GM Detector?

Wear appropriate PPE, avoid direct contact with radioactive materials, and follow established safety protocols.

10.8 Where Can I Purchase a GM Detector?

GM detectors can be purchased from reputable scientific equipment suppliers and online retailers.

10.9 How Much Does a GM Detector Cost?

The cost of a GM detector varies depending on the type, features, and manufacturer, ranging from a few hundred to several thousand dollars.

10.10 What Training is Required to Use a GM Detector?

Training requirements depend on the application but should include basic radiation safety and detector operation.
