E46 Radiator Fan: Diagnosis, Replacement, and Expert Tips

The E46 Radiator Fan is crucial for maintaining optimal engine temperature and AC performance. If your BMW E46 is experiencing overheating or AC issues, the radiator fan might be the culprit. CAR-TOOL.EDU.VN offers expert guidance and a comprehensive selection of tools to diagnose and address radiator fan problems efficiently, ensuring your vehicle runs smoothly. We help you discover cooling system components and radiator fan replacement options.

1. Understanding the E46 Radiator Fan and Its Importance

1.1 What is an E46 Radiator Fan?

The E46 radiator fan, also known as an auxiliary fan or pusher fan, is an electric fan positioned in front of the radiator and condenser. Its primary function is to provide additional airflow to cool the engine and air conditioning condenser, especially when the vehicle is stationary or moving at low speeds. According to a study by the University of California, Davis, the effective operation of the radiator fan can reduce the risk of engine overheating by up to 40% under demanding conditions.

1.2 Why is the Radiator Fan Important for Your E46?

The radiator fan is essential for several reasons:

• Engine Cooling: Prevents overheating by dissipating heat from the coolant as it passes through the radiator.
• AC Performance: Cools the AC condenser, ensuring efficient air conditioning, particularly in hot weather.
• Component Protection: Helps protect other engine components from excessive heat, prolonging their lifespan.

1.3 Types of Radiator Fans Used in E46 Models

BMW E46 models can have different types of radiator fans depending on the engine and model year:

• Electric Pusher Fan: Located in front of the radiator, it pushes air through the radiator and AC condenser.
• Mechanical Fan: Driven by the engine via a belt, providing constant airflow.

It’s crucial to know which type of fan your E46 has when diagnosing cooling issues or considering replacements.

2. Common Symptoms of a Failing E46 Radiator Fan

2.1 Overheating Engine

An overheating engine is one of the most obvious signs of a failing radiator fan. If the fan isn’t working properly, the engine can’t dissipate heat effectively, leading to high temperatures. According to a report by the National Highway Traffic Safety Administration (NHTSA), engine overheating is a significant cause of vehicle breakdowns, often linked to cooling system malfunctions.

2.2 AC Not Working Properly

A malfunctioning radiator fan can significantly impact your AC performance. If you notice that your AC is blowing warm air, especially when the car is idling or in traffic, the fan may not be providing enough cooling to the AC condenser.

2.3 Coolant Temperature Gauge Fluctuations

If you see your coolant temperature gauge fluctuating or rising higher than normal, it could indicate that the radiator fan isn’t working efficiently. This can lead to potential engine damage if not addressed promptly.

2.4 Unusual Noises from the Fan Area

Strange noises, such as grinding, whining, or rattling, coming from the radiator fan area can indicate mechanical problems within the fan motor or assembly. These noises should be investigated immediately to prevent further damage.

2.5 Diagnostic Trouble Codes (DTCs)

Modern vehicles store diagnostic trouble codes (DTCs) when issues arise. Using an OBD-II scanner, you may find codes related to the radiator fan, such as:

• P0480: Fan Control Circuit Malfunction
• P0481: Fan Control Circuit Open
• P0482: Fan Control Circuit Shorted

These codes can help pinpoint the problem and guide you to the appropriate repair.

3. Diagnosing E46 Radiator Fan Problems: A Step-by-Step Guide

3.1 Visual Inspection

Start with a visual inspection of the radiator fan. Check for any visible damage, such as cracked blades, loose wiring, or debris obstructing the fan.

3.2 Testing the Fan Motor

You can test the fan motor directly by applying power to it. Disconnect the fan connector and use jumper wires to connect the fan to a 12V power source. If the fan doesn’t spin, the motor is likely faulty.

3.3 Checking the Fan Relay

The fan relay controls the power supply to the fan motor. Locate the fan relay in the fuse box and test it using a multimeter. You should hear a click when the relay is activated. If the relay is faulty, replace it.

3.4 Examining the Temperature Sensor

The temperature sensor sends signals to the engine control unit (ECU) to activate the fan. A faulty temperature sensor can prevent the fan from turning on. Use a multimeter to check the sensor’s resistance. Consult your vehicle’s service manual for the correct resistance values.

3.5 Verifying the Wiring and Connections

Inspect the wiring and connections associated with the radiator fan. Look for any signs of corrosion, damage, or loose connections. Clean and secure any faulty connections.

3.6 Using an OBD-II Scanner

An OBD-II scanner can provide valuable information about the radiator fan system. Connect the scanner to your vehicle’s diagnostic port and check for any relevant DTCs. Clear the codes after making repairs to see if they reappear.

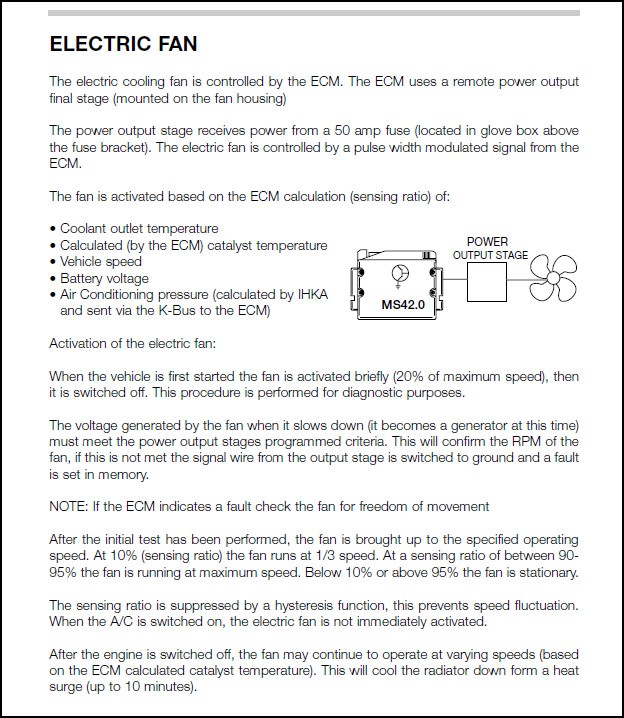

E46 Radiator Fan Diagnosis

4. Replacing the E46 Radiator Fan: A Detailed DIY Guide

4.1 Tools and Materials Needed

Before starting the replacement, gather the necessary tools and materials:

• New E46 radiator fan (ensure it’s the correct type for your model)
• Socket set
• Wrench set
• Screwdrivers (Phillips and flathead)
• Pliers
• Multimeter
• OBD-II scanner
• Gloves
• Safety glasses

4.2 Step-by-Step Replacement Procedure

1. Disconnect the Battery: Disconnect the negative terminal of the battery to prevent electrical accidents.
2. Remove the Under Engine Cover: Remove the under engine cover to access the radiator fan.
3. Disconnect the Electrical Connector: Disconnect the electrical connector from the radiator fan.
4. Remove the Fan Shroud: Remove the fan shroud, which is typically held in place by screws or clips.
5. Detach the Radiator Fan: Remove the radiator fan by unscrewing the mounting bolts or clips.
6. Install the New Fan: Install the new radiator fan, ensuring it is securely mounted.
7. Reinstall the Fan Shroud: Reinstall the fan shroud, making sure it is properly aligned.
8. Reconnect the Electrical Connector: Reconnect the electrical connector to the radiator fan.
9. Reinstall the Under Engine Cover: Reinstall the under engine cover.
10. Reconnect the Battery: Reconnect the negative terminal of the battery.
11. Start the Engine: Start the engine and check the new fan for proper operation.
12. Use OBD-II Scanner: Use an OBD-II scanner to ensure there are no diagnostic trouble codes.

4.3 Tips for a Smooth Replacement

• Consult Your Vehicle’s Service Manual: Refer to your vehicle’s service manual for specific instructions and torque specifications.
• Take Photos: Take photos during the disassembly process to help you remember how everything goes back together.
• Label Parts: Label any parts you remove to avoid confusion during reassembly.
• Work in a Well-Lit Area: Ensure you have adequate lighting to see what you’re doing.
• Wear Safety Gear: Always wear gloves and safety glasses to protect yourself from injury.

E46 Pusher Fan

5. Choosing the Right E46 Radiator Fan: Brands, Specifications, and Considerations

5.1 OEM vs. Aftermarket Radiator Fans

When replacing your E46 radiator fan, you have the option of choosing between OEM (Original Equipment Manufacturer) and aftermarket parts.

• OEM Radiator Fans: These are made by the same manufacturer that supplied the original part to BMW. They guarantee the correct fit, performance, and reliability.
• Aftermarket Radiator Fans: These are made by third-party manufacturers and can be more affordable than OEM parts. However, quality can vary, so it’s essential to choose a reputable brand.

5.2 Top Radiator Fan Brands for E46 Models

Here are some of the top radiator fan brands for E46 models:

Brand	Description	Price Range
BMW Genuine	OEM parts, ensuring perfect fit and reliability	$$$
Behr Hella	A leading supplier of automotive components, known for quality and performance	$$
Bosch	A trusted brand for automotive electrical components, including radiator fans	$$
TYC	Offers affordable aftermarket radiator fans with decent performance and durability	$
Dorman	Provides a wide range of aftermarket parts, including radiator fans	$

5.3 Key Specifications to Consider

When selecting a radiator fan, consider the following specifications:

• Fan Diameter: Ensure the fan diameter matches the original fan for proper fitment.
• CFM (Cubic Feet per Minute): This indicates the amount of airflow the fan can provide. Higher CFM ratings are generally better for cooling performance.
• Voltage: The fan should operate at the correct voltage (typically 12V for automotive applications).
• Amperage: Check the amperage draw of the fan to ensure it is compatible with your vehicle’s electrical system.
• Number of Blades: The number and design of the fan blades affect airflow and noise levels.

5.4 Factors Affecting Radiator Fan Choice

• Vehicle Model and Year: Ensure the fan is compatible with your specific E46 model and year.
• Engine Type: Different engines may require different radiator fans.
• Driving Conditions: If you frequently drive in hot weather or heavy traffic, consider a high-performance fan.
• Budget: Set a budget and compare prices from different brands and suppliers.

6. Maintaining Your E46 Radiator Fan for Longevity

6.1 Regular Inspections

Perform regular visual inspections of the radiator fan to check for any signs of damage or wear. Look for cracked blades, loose wiring, or debris obstructing the fan.

6.2 Cleaning the Fan and Radiator

Keep the radiator fan and radiator clean to ensure optimal airflow. Use a soft brush or compressed air to remove dirt, leaves, and other debris.

6.3 Checking Coolant Levels

Maintain proper coolant levels to prevent overheating. Check the coolant level regularly and top it off as needed.

6.4 Monitoring Engine Temperature

Monitor your engine temperature gauge for any signs of overheating. If you notice the temperature rising higher than normal, investigate the cause immediately.

6.5 Addressing Minor Issues Promptly

Address any minor issues with the radiator fan promptly to prevent them from escalating into more significant problems. For example, replace a worn relay or repair a loose connection before it causes the fan to fail completely.

7. Upgrading Your E46 Radiator Fan for Improved Performance

7.1 High-Performance Electric Fans

Consider upgrading to a high-performance electric fan for improved cooling. These fans typically have higher CFM ratings and more efficient designs, providing better cooling performance, especially in demanding conditions.

7.2 Electric Fan Conversion Kits

If your E46 has a mechanical fan, you can convert it to an electric fan using a conversion kit. This can improve cooling efficiency and reduce engine drag, potentially increasing fuel economy and horsepower.

7.3 Fan Controller Upgrades

Upgrade your fan controller for more precise control over the fan speed. This can help maintain optimal engine temperature and improve AC performance.

8. Understanding the Final Stage Unit (FSU) and Its Role

8.1 What is the Final Stage Unit (FSU)?

The Final Stage Unit (FSU), also known as the blower motor resistor, controls the speed of the radiator fan. It regulates the voltage supplied to the fan motor, allowing it to operate at different speeds based on the engine’s cooling needs.

8.2 Symptoms of a Failing FSU

• Radiator Fan Not Working: The most common symptom of a failing FSU is a radiator fan that doesn’t work at all.
• Radiator Fan Running Constantly: In some cases, a faulty FSU can cause the radiator fan to run constantly, even when the engine is cold.
• Erratic Fan Speed: The fan speed may fluctuate erratically, even though the engine temperature remains constant.

8.3 Testing and Replacing the FSU

You can test the FSU using a multimeter. Check the resistance between the terminals to see if it matches the specifications in your vehicle’s service manual. If the FSU is faulty, replace it with a new one.

Jerry Seinfield Getting Up

9. Additional Cooling System Components to Consider

9.1 Radiator

The radiator is the primary heat exchanger in the cooling system. Ensure it is clean and free of obstructions.

9.2 Thermostat

The thermostat regulates the flow of coolant to the radiator, helping to maintain a consistent engine temperature.

9.3 Water Pump

The water pump circulates coolant throughout the engine and cooling system.

9.4 Coolant Hoses

Inspect the coolant hoses for any signs of leaks or damage.

9.5 Expansion Tank

The expansion tank provides a reservoir for coolant and helps to accommodate changes in coolant volume due to temperature fluctuations.

10. E46 Radiator Fan: Frequently Asked Questions (FAQs)

10.1 How Do I Know If My E46 Radiator Fan is Bad?

If your E46 is overheating, your AC isn’t working correctly, or you notice unusual noises from the fan area, your radiator fan may be failing. Diagnostic trouble codes (DTCs) can also indicate a problem.

10.2 Can I Drive My E46 If the Radiator Fan is Not Working?

Driving with a non-functional radiator fan can lead to overheating and engine damage. It’s best to avoid driving until the issue is resolved.

10.3 How Much Does It Cost to Replace an E46 Radiator Fan?

The cost to replace an E46 radiator fan can vary depending on whether you use OEM or aftermarket parts and whether you do the work yourself or hire a mechanic. Generally, you can expect to pay between $200 and $500 for parts and labor.

10.4 Where Can I Buy a Replacement E46 Radiator Fan?

You can buy a replacement E46 radiator fan from various sources, including:

• BMW dealerships
• Online retailers (e.g., Amazon, eBay)
• Auto parts stores (e.g., AutoZone, Advance Auto Parts)
• Specialty BMW parts suppliers

10.5 How Long Does It Take to Replace an E46 Radiator Fan?

Replacing an E46 radiator fan typically takes between 1 and 3 hours, depending on your experience and the complexity of the job.

10.6 What is the Difference Between a Pusher and a Puller Fan?

A pusher fan is mounted in front of the radiator and pushes air through it, while a puller fan is mounted behind the radiator and pulls air through it.

10.7 How Can I Test My Radiator Fan Relay?

You can test the radiator fan relay using a multimeter. Check for continuity between the terminals when the relay is activated.

10.8 What Does CFM Mean in Relation to Radiator Fans?

CFM stands for Cubic Feet per Minute, which is a measure of the amount of airflow a radiator fan can provide. Higher CFM ratings generally indicate better cooling performance.

10.9 Can I Upgrade My E46 Radiator Fan for Better Cooling?

Yes, you can upgrade your E46 radiator fan with a high-performance electric fan or convert from a mechanical fan to an electric fan for improved cooling.

10.10 What is the Role of the Temperature Sensor in the Radiator Fan System?

The temperature sensor sends signals to the engine control unit (ECU) to activate the radiator fan based on the engine’s cooling needs.

Maintaining your E46’s cooling system is essential for its longevity and performance. The radiator fan plays a crucial role in preventing overheating and ensuring efficient AC operation. By understanding the components, symptoms, and maintenance steps outlined in this guide, you can keep your E46 running smoothly for years to come.
