Is the Actron Elite Autoscanner the Right Scan Tool for You?

The Actron Elite Autoscanner is a versatile diagnostic tool for both older and newer vehicles, offering enhanced OBD I and OBD II capabilities that empowers technicians and DIYers to diagnose and repair vehicles efficiently. At CAR-TOOL.EDU.VN, we will explore its features, benefits, and how it compares to other scan tools on the market. Consider upgrading to a more advanced car diagnostic scanner for optimal performance.

1. What Is the Actron Elite Autoscanner and Who Is It For?

The Actron Elite Autoscanner (CP9690) is an enhanced OBD I and OBD II scan tool designed for diagnosing a wide range of vehicle issues. It caters to both professional mechanics and car enthusiasts looking for a comprehensive diagnostic solution. According to Bosch Automotive Service Solutions LLC, the manufacturer of Actron tools, this scanner is compatible with all 1996 and newer import, domestic, diesel, and hybrid vehicles (OBD II & CAN), as well as 1994 and 1995 OBD II compliant vehicles.

• Target Audience:
  • Professional Mechanics: Benefit from its comprehensive diagnostic capabilities, including CodeConnect and live data streaming.
  • DIY Car Enthusiasts: Find it user-friendly for diagnosing and fixing car problems at home.
  • Garage Owners/Managers: Can equip their technicians with a reliable tool to improve diagnostic accuracy and efficiency.

Actron Elite Autoscanner Screen

2. What are the Key Features of the Actron Elite Autoscanner?

The Actron Elite Autoscanner has a range of features designed to make vehicle diagnostics more accessible and efficient. These include software and hardware capabilities.

2.1. Software Features

• Broad Vehicle Compatibility: Works with virtually all 1996 and newer vehicles, including those compliant with OBD II.
• OBD I Cables Included: Comes with OBD I cables for older GM, Ford, Chrysler, and Toyota models from 1984-1995.
• CodeConnect**:** A vast database with over 26 million experience-based fixes verified by ASE-certified technicians for Diagnostic Trouble Codes (DTCs).
• Service Resets: Oil light reset for many BMW and GM models (1996-2013), with limited support for Ford and Hyundai; battery reset for late-model BMW, Mini Cooper, and Ford F-Service trucks.
• Airbag & ABS Codes: Reads and defines airbag and ABS codes for a wide range of vehicles from GM, Ford, Chrysler, Toyota, Honda, Nissan, and Hyundai (1996-2013).
• Live Real-Time Data: Access to over 300 data PIDs, depending on the vehicle, with graphing capabilities for two PIDs simultaneously.
• Data Recording: Ability to record and playback live data for detailed analysis.
• MIL Reset: Resets the Malfunction Indicator Lamp (MIL) and turns off the Check Engine light.
• Manufacturer-Specific Definitions: Provides detailed code definitions specific to the make, model, and year of the vehicle.
• PC Printing: Allows diagnostic data to be printed via PC.
• AutoID™: Automatically identifies most 2000 and newer vehicles.
• Enhanced Codes: Enhanced engine and transmission codes for deeper diagnostics.
• Visual Communication Indicator: Provides visual feedback during communication and data retrieval from an OBD II vehicle.
• I/M Monitors: Reads and displays all available I/M Monitors (emissions status).
• Pending DTCs: Reads and displays pending DTCs for proactive diagnostics.
• Freeze Frame Data: Captures a snapshot of vehicle data at the time of the fault.
• Vehicle Information: Reads and displays VIN, CVN, and Cal ID.
• System Monitoring: Battery, alternator, and charging system monitor.
• Mode 6 Support: Presents Mode 6 data in layman’s terms for easier understanding.
• State OBD Check: Displays state OBD check readiness.
• Drive Cycle Mode: Displays OBD II Drive Cycle Mode information.
• Multilingual Support: Offers menu and code definitions in English, Spanish, and French.
• Component Locator: Provides text-based descriptions of component locations on the vehicle.
• Acronym Library: Includes a library of automotive acronyms.
• PID Descriptions: Full PID name descriptions in live data.
• Customizable Setup: System setup menu includes language setup, unit of measure, display test, keypad test, memory test, tool information, and program mode.

2.2. Hardware Features

• Color Display: Easy-to-read color display for viewing diagnostic data.
• Comprehensive Cable Kit: Includes OBD II vehicle diagnostic cable, extension cable, cigarette lighter cable, and OBD I cables for GM, Ford, Chrysler, and Toyota.
• Multilingual Manual: User manual available in English, Spanish, and French.
• USB Updatable: Can be updated via USB port to ensure compatibility with the latest vehicles.
• Optional Battery Backup: Allows for off-vehicle review of data (batteries not required for use when connected to the vehicle).

3. What are the Benefits of Using the Actron Elite Autoscanner?

Using the Actron Elite Autoscanner offers many advantages for both professional mechanics and DIY enthusiasts.

• Comprehensive Diagnostics:
  • Enhanced OBD I and OBD II coverage for a wide range of vehicles.
  • Reads and clears diagnostic trouble codes (DTCs) for engine, transmission, ABS, and airbag systems.
  • Provides access to live data streams, allowing real-time monitoring of vehicle performance.
• Ease of Use:
  • User-friendly interface with a color display for easy navigation.
  • Automatic vehicle identification (AutoID™) simplifies the diagnostic process.
  • CodeConnect® feature provides verified fixes, saving time and effort in troubleshooting.
• Cost Savings:
  • Enables DIYers to diagnose and fix common car issues, reducing the need for expensive mechanic visits.
  • Helps professional mechanics quickly identify problems, improving shop efficiency and customer satisfaction.
• Versatility:
  • Supports multiple languages (English, Spanish, French) for a diverse user base.
  • Offers component locator and acronym library for quick reference.
  • Includes a battery/alternator/charging system monitor to assess electrical system health.
• Upgradability:
  • Software updates via USB ensure compatibility with the latest vehicle models and diagnostic protocols.

4. How Does the Actron Elite Autoscanner Compare to Other Scan Tools?

When compared to other scan tools on the market, the Actron Elite Autoscanner stands out in several key areas.

Feature	Actron Elite Autoscanner (CP9690)	Basic OBD II Scanners	Professional-Grade Scan Tools
Vehicle Compatibility	1996+ OBD II, including OBD I support for older GM, Ford, Chrysler, and Toyota models	1996+ OBD II only	Extensive coverage including OBD I, OBD II, CAN, and manufacturer-specific protocols for a wide range of domestic, Asian, and European vehicles
Diagnostic Functions	Reads/clears codes, live data, CodeConnect fixes, ABS/Airbag codes, service resets (oil/battery), component locator, battery/alternator testing	Reads/clears basic engine codes and limited live data	Advanced diagnostics including bi-directional controls, module programming, advanced coding, comprehensive live data streaming, and specialized tests (e.g., cylinder balance, relative compression)
Ease of Use	User-friendly interface with color display, AutoID, and multilingual support	Simple interface, often with limited display capabilities	More complex interface with advanced navigation, touch screen, and detailed graphing capabilities; may require specialized training
Additional Features	CodeConnect database, component locator, acronym library, trilingual support	Limited or no additional features	Wireless connectivity (Bluetooth, Wi-Fi), remote diagnostics, access to repair databases and technical service bulletins (TSBs), printing capabilities, and cloud-based data storage
Update Capability	USB updatable	May not be updatable or requires a computer connection	Regular software updates via Wi-Fi or USB to maintain compatibility with the latest vehicle models and diagnostic protocols
Target User	DIY enthusiasts and professional mechanics needing comprehensive diagnostics	DIYers and basic car maintenance	Professional technicians and repair shops requiring in-depth diagnostics and advanced functionality
Price Range (Estimated)	Mid-range (approximately $200-$300)	Low-end (under $100)	High-end ($1000+)
Example Models	Actron CP9690 Elite AutoScanner	Autel MaxiScan MS300, FIXD Sensor	Snap-on Zeus, Autel MaxiSYS Elite II Pro, Launch X431 Torque
Pros	Broad vehicle compatibility, CodeConnect database, ABS/Airbag support, service resets, user-friendly	Affordable, easy to use for basic diagnostics	Extensive vehicle coverage, advanced diagnostic functions, wireless connectivity, access to repair information
Cons	Lacks some advanced features found in professional-grade tools, may not support all manufacturer-specific codes	Limited functionality, basic diagnostics only	High cost, complex interface may require training
Use Cases	Diagnosing and repairing common vehicle issues, resetting service lights, reading ABS/Airbag codes, performing battery/alternator tests	Reading and clearing basic engine codes, checking emissions readiness	Comprehensive diagnostics, module programming, bi-directional testing, advanced troubleshooting, and accessing vehicle repair information

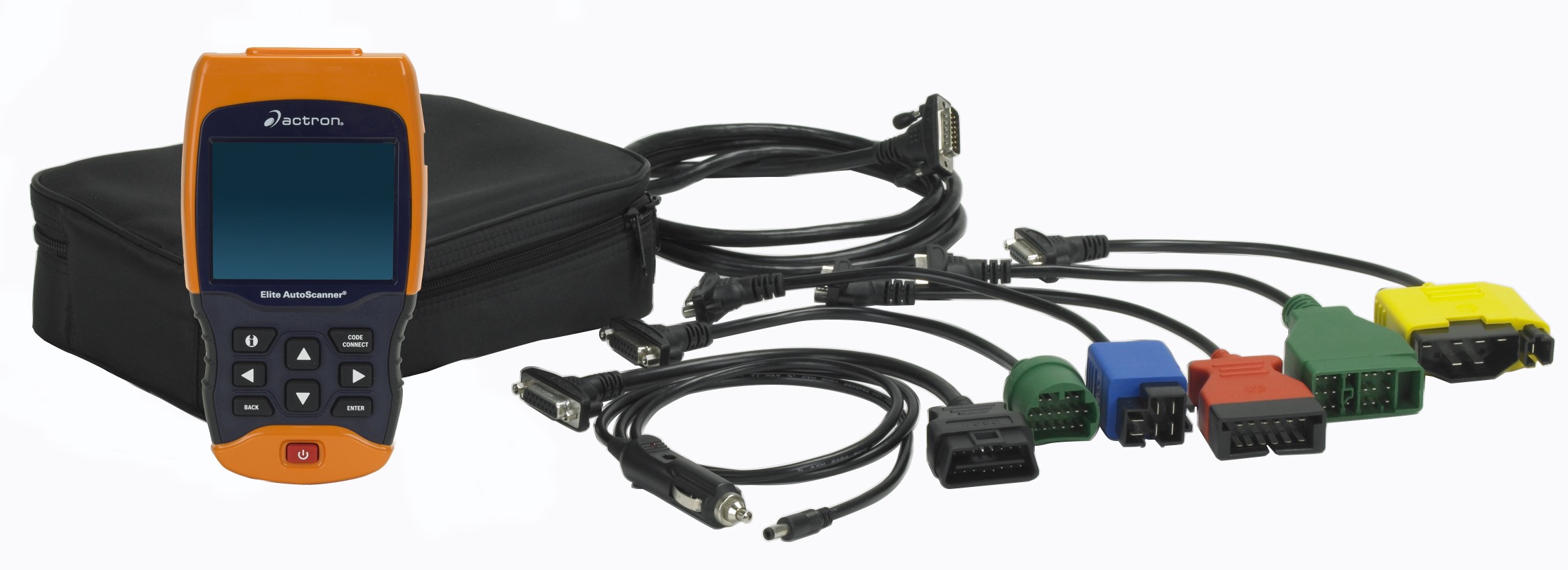

Actron Elite Autoscanner Kit

5. What are the Specific Use Cases for the Actron Elite Autoscanner?

The Actron Elite Autoscanner is versatile and can be used in a variety of scenarios to diagnose and resolve vehicle issues.

• Reading and Clearing Diagnostic Trouble Codes (DTCs):
  • Use Case: A car owner notices the check engine light is on. They use the Actron Elite Autoscanner to read the DTCs, which reveal a faulty oxygen sensor.
  • Benefit: The user can quickly identify the problem, order the correct replacement part, and clear the code after replacing the sensor, saving on mechanic fees.
• Diagnosing ABS and Airbag Issues:
  • Use Case: The ABS warning light illuminates on the dashboard. A mechanic uses the scanner to read the ABS codes, identifying a malfunctioning wheel speed sensor.
  • Benefit: The mechanic can pinpoint the exact sensor that needs replacement, ensuring an accurate repair and preventing unnecessary replacements.
• Performing Service Resets:
  • Use Case: After an oil change on a BMW, a technician uses the Actron Elite Autoscanner to reset the oil service light.
  • Benefit: The technician can quickly and easily reset the service light, ensuring the vehicle’s maintenance schedule is accurately tracked.
• Monitoring Live Data Streams:
  • Use Case: A car is experiencing intermittent performance issues. The mechanic uses the scanner to monitor live data streams, such as engine temperature, RPM, and O2 sensor readings, to identify anomalies.
  • Benefit: By observing real-time data, the mechanic can diagnose issues that might not trigger a DTC, such as a failing mass airflow sensor or intermittent misfires.
• Testing Battery and Charging System:
  • Use Case: A car owner suspects their battery is failing. They use the Actron Elite Autoscanner to perform a battery and charging system test.
  • Benefit: The test reveals that the battery is indeed weak and needs replacement, preventing a potential breakdown.
• Using CodeConnect for Verified Fixes:
  • Use Case: A technician reads a DTC and uses the CodeConnect feature to access a database of over 26 million verified fixes.
  • Benefit: The technician finds a detailed, step-by-step solution to the problem, saving time and ensuring the repair is done correctly.
• Identifying Component Locations:
  • Use Case: A DIYer needs to replace a specific component but is unsure of its location in the engine bay. They use the component locator feature to find a text-based description and diagram.
  • Benefit: The DIYer can quickly locate the component, making the repair process smoother and more efficient.
• Verifying Emissions Readiness:
  • Use Case: A car owner needs to pass an emissions test. They use the Actron Elite Autoscanner to check the status of the I/M monitors and ensure that all systems are ready.
  • Benefit: The car owner can identify any incomplete monitors and address them before taking the car for the emissions test, avoiding a failed inspection.
• Diagnosing Older Vehicles with OBD I Support:
  • Use Case: A mechanic is working on a 1994 GM vehicle and needs to diagnose an issue. They use the included OBD I cables to connect the Actron Elite Autoscanner.
  • Benefit: The mechanic can access diagnostic information from the older vehicle, which would not be possible with a standard OBD II scanner.
• Reading Freeze Frame Data:
  • Use Case: A car experiences a sudden engine stall. The mechanic uses the scanner to read the freeze frame data, capturing a snapshot of the vehicle’s parameters at the time of the stall.
  • Benefit: The freeze frame data provides valuable clues about the conditions that led to the stall, helping the mechanic diagnose the root cause more effectively.

6. How to Use the Actron Elite Autoscanner: A Step-by-Step Guide

Using the Actron Elite Autoscanner is straightforward. Here’s a step-by-step guide to help you get started.

1. Preparation:
   • Ensure the vehicle is parked in a safe location and the engine is turned off.
   • Locate the OBD II port in the vehicle. It is typically found under the dashboard on the driver’s side.
2. Connecting the Scanner:
   • Plug the OBD II connector cable into the OBD II port. For older vehicles (1984-1995 GM, Ford, Chrysler, Toyota), use the appropriate OBD I cable.
   • Turn the ignition key to the “ON” position without starting the engine.
3. Powering On:
   • The scanner should power on automatically. If it doesn’t, ensure the connection is secure and the vehicle’s battery has sufficient charge.
4. Vehicle Identification:
   • The scanner may automatically identify the vehicle using AutoID™ for 2000 and newer models. If not, you may need to manually enter the vehicle’s information (year, make, and model).
5. Navigating the Menu:
   • Use the arrow keys to navigate the main menu. Common options include:
     • Read Codes: Retrieves diagnostic trouble codes (DTCs).
     • Erase Codes: Clears DTCs after repairs are made.
     • Live Data: Displays real-time vehicle data.
     • Freeze Frame: Shows data recorded at the time a DTC was set.
     • I/M Readiness: Checks the status of emissions systems.
     • Vehicle Info: Displays the vehicle identification number (VIN) and other information.
6. Reading Diagnostic Trouble Codes (DTCs):
   • Select “Read Codes” from the main menu.
   • The scanner will display any stored DTCs along with their descriptions.
   • Use the CodeConnect feature for experience-based fixes verified by ASE-certified technicians.
7. Viewing Live Data:
   • Select “Live Data” from the main menu.
   • Choose the specific data parameters you want to monitor (e.g., engine RPM, coolant temperature, O2 sensor readings).
   • The scanner will display the data in real-time, allowing you to observe vehicle performance.
8. Clearing Diagnostic Trouble Codes (DTCs):
   • After making necessary repairs, select “Erase Codes” from the main menu.
   • Follow the on-screen prompts to clear the DTCs.
   • Note: Clearing codes may also reset the vehicle’s emissions monitors, so you may need to perform a drive cycle to ensure the monitors are ready for an emissions test.
9. Additional Features:
   • Use the “Component Locator” for text-based descriptions of component locations.
   • Access the “Acronym Library” for definitions of automotive acronyms.
   • Perform a “Battery / Alternator / Charging System Monitor” test to assess electrical system health.
10. Disconnecting the Scanner:
    • Turn the ignition key to the “OFF” position.
    • Disconnect the OBD II connector cable from the vehicle’s OBD II port.
    • Store the scanner and cables in a safe, dry place.

7. Maintaining and Updating Your Actron Elite Autoscanner

To ensure your Actron Elite Autoscanner remains effective and up-to-date, regular maintenance and updates are essential.

• Cleaning:
  • Keep the scanner clean by wiping it down with a soft, dry cloth. Avoid using solvents or harsh chemicals that could damage the plastic casing.
  • Store the scanner in a clean, dry environment when not in use to prevent dust and moisture accumulation.
• Cable Care:
  • Inspect the cables regularly for any signs of damage, such as frayed wires or cracked connectors.
  • Avoid pulling the cables forcefully from the vehicle’s OBD II port. Instead, gently disconnect the cable to prevent damage to the connector or wiring.
  • Store the cables neatly to prevent tangling and damage.
• Software Updates:
  • Check the manufacturer’s website (Bosch Automotive Service Solutions) for software updates. These updates typically include:
    • Compatibility with new vehicle models
    • Bug fixes
    • Improved diagnostic capabilities
  • Download the update software to your computer.
  • Connect the Actron Elite Autoscanner to your computer using a USB cable.
  • Follow the on-screen instructions to install the software update.
  • Ensure the scanner remains connected to the computer and powered on during the entire update process.
• Battery Care (If Applicable):
  • If your Actron Elite Autoscanner uses batteries for off-vehicle review, replace them as needed.
  • Remove the batteries if you plan to store the scanner for an extended period to prevent corrosion.
• Calibration and Verification:
  • While the Actron Elite Autoscanner does not require regular calibration, it’s a good practice to verify its accuracy periodically.
  • Compare readings from the scanner with known good values or reference data to ensure it is providing accurate information.
• User Manual:
  • Keep the user manual in a safe place for quick reference.
  • Refer to the manual for troubleshooting tips, feature explanations, and other important information.
• Storage:
  • Store the scanner in its carrying case or a protective pouch to prevent damage during storage and transport.
  • Avoid exposing the scanner to extreme temperatures or humidity, which could damage the internal components.
• Regular Checks:
  • Periodically check all the scanner’s functions to ensure they are working correctly.
  • Test the scanner on a known good vehicle to confirm it is reading and displaying data accurately.
• Professional Servicing:
  • If you encounter any issues with the scanner that you cannot resolve, consider seeking professional servicing or repair.

8. Addressing Common Issues with the Actron Elite Autoscanner

Like any electronic tool, the Actron Elite Autoscanner may encounter issues. Here are some common problems and how to address them.

Problem	Possible Causes	Solutions
Scanner won’t power on	Dead batteries (if using battery backup), faulty OBD II connection, vehicle battery issue	Replace batteries, ensure OBD II connection is secure, check vehicle battery voltage, try connecting to a different vehicle
Cannot connect to vehicle	Incorrect OBD II connection, incompatible vehicle, damaged cable, software issue	Ensure OBD II connection is secure, verify vehicle is OBD II compliant, inspect cable for damage, update scanner software, try a different vehicle
Inaccurate readings	Faulty sensor in the scanner, software glitch, incorrect vehicle settings	Verify vehicle settings, compare readings with known good values, update scanner software, contact customer support
CodeConnect not working	No internet connection (if required), outdated software, server issue	Ensure internet connection, update scanner software, check manufacturer’s website for server status, try again later
Scanner freezes or locks up	Software glitch, low battery (if using battery backup), corrupted data	Restart scanner, replace batteries, update scanner software, perform a factory reset (if available), contact customer support
Cannot update software	Incorrect USB connection, outdated software on computer, firewall or antivirus interference	Ensure USB connection is secure, update computer software, disable firewall or antivirus temporarily, download the latest update software from the manufacturer’s website, follow on-screen instructions carefully
Missing or incomplete code definitions	Outdated software, vehicle-specific code not supported	Update scanner software, check manufacturer’s website for vehicle compatibility list, use online resources to look up code definitions, contact customer support
Display issues (e.g., dim, flickering)	Low battery (if using battery backup), damaged display	Replace batteries, adjust display settings, contact customer support
Cable damage	Physical stress, improper storage	Inspect cables regularly, store cables properly to avoid tangling or damage, replace damaged cables with genuine replacement parts
Scanner won’t read live data	Incompatible vehicle, incorrect settings, software issue	Verify vehicle compatibility, ensure correct settings, update scanner software, try a different vehicle
Scanner gives incorrect diagnostic results	Faulty sensor, software glitch, improper usage	Verify vehicle information, check sensor connections, update scanner software, follow instructions carefully, cross-reference results with other diagnostic methods

9. Where to Buy the Actron Elite Autoscanner

The Actron Elite Autoscanner is available from various retailers, both online and in physical stores.

• Online Retailers:
  • Amazon: Often provides competitive pricing, customer reviews, and fast shipping.
  • eBay: Can be a good source for both new and used scanners.
  • CAR-TOOL.EDU.VN: Offers detailed product information, expert advice, and support.
  • Automotive Parts Retailers: Websites like AutoZone, Advance Auto Parts, and O’Reilly Auto Parts may carry the Actron Elite Autoscanner.
• Physical Stores:
  • Auto Parts Stores: Local auto parts stores like AutoZone, Advance Auto Parts, and O’Reilly Auto Parts are common places to find the Actron Elite Autoscanner.
  • Tools and Equipment Suppliers: Stores specializing in tools and equipment for automotive repair may also carry this scanner.

10. Frequently Asked Questions (FAQ) about the Actron Elite Autoscanner

• What Vehicles Are Compatible with the Actron Elite Autoscanner?
  • The Actron Elite Autoscanner is compatible with all 1996 and newer import, domestic, diesel, and hybrid vehicles (OBD II & CAN), as well as 1994 and 1995 OBD II compliant vehicles. It also includes OBD I cables for older GM, Ford, Chrysler, and Toyota models.
• Can the Actron Elite Autoscanner Reset My Check Engine Light?
  • Yes, the Actron Elite Autoscanner can reset the check engine light after you have diagnosed and repaired the underlying issue.
• Does the Actron Elite Autoscanner Read ABS and Airbag Codes?
  • Yes, the Actron Elite Autoscanner reads and defines ABS and airbag codes for many 1996-2013 GM, Ford, Chrysler, Toyota, Honda, Nissan, and Hyundai vehicles.
• How Do I Update the Actron Elite Autoscanner?
  • You can update the Actron Elite Autoscanner via a USB port. Visit the manufacturer’s website (Bosch Automotive Service Solutions) to download the latest software and follow the instructions provided.
• What Is CodeConnect and How Does It Work?
  • CodeConnect is a comprehensive database of over 26 million verified fixes for DTCs (Diagnostic Trouble Codes). It provides experience-based solutions verified by ASE-certified technicians to help you diagnose and repair your vehicle.
• Can I Use the Actron Elite Autoscanner on Older Vehicles with OBD I?
  • Yes, the Actron Elite Autoscanner includes OBD I cables for 1984-1995 GM and Ford vehicles, and 1989-1995 Chrysler and Toyota vehicles.
• Does the Actron Elite Autoscanner Display Live Data?
  • Yes, the Actron Elite Autoscanner displays live real-time data, with over 300 possible data PIDs available depending on the vehicle.
• Is the Actron Elite Autoscanner Easy to Use for a Beginner?
  • Yes, the Actron Elite Autoscanner features a user-friendly interface with a color display and automatic vehicle identification, making it suitable for both beginners and experienced users.
• Where Can I Find the User Manual for the Actron Elite Autoscanner?
  • The user manual is included with the product and can also be downloaded from the manufacturer’s website (Bosch Automotive Service Solutions).
• What Should I Do If the Actron Elite Autoscanner Is Not Connecting to My Vehicle?
  • Ensure the OBD II connection is secure, verify that your vehicle is OBD II compliant, inspect the cable for damage, and try updating the scanner software. If the issue persists, contact customer support for assistance.

Need help finding the right auto parts or diagnostic tools? Contact CAR-TOOL.EDU.VN today at 456 Elm Street, Dallas, TX 75201, United States or Whatsapp: +1 (641) 206-8880. Visit our website CAR-TOOL.EDU.VN for more information.
