What Are The Advantages Of Using A U480 Car Diagnostic Scanner Manual?

The U480 Car Diagnostic Scanner Manual provides essential guidance for effectively utilizing this tool to diagnose and resolve vehicle issues; CAR-TOOL.EDU.VN offers comprehensive information about the U480 scanner, including its functions, specifications, and troubleshooting tips, allowing users to quickly identify and address problems, saving time and money on automotive repairs. By understanding diagnostic trouble codes (DTCs) and performing accurate vehicle inspections, you’ll optimize your vehicle’s performance and enhance its lifespan.

1. Understanding the U480 Car Diagnostic Scanner

What exactly is the U480 car diagnostic scanner, and why should you consider using its manual?

The U480 car diagnostic scanner is a handheld tool designed to read and clear diagnostic trouble codes (DTCs) in OBD2/EOBD compliant vehicles, which include those using CAN bus technology; CAR-TOOL.EDU.VN emphasizes the importance of consulting the U480 car diagnostic scanner manual to understand its functions, capabilities, and limitations, ensuring accurate and effective vehicle diagnostics. This tool helps vehicle owners and technicians identify problems quickly, saving time and reducing unnecessary repair costs.

1.1. What is an OBD2 Scanner?

An OBD2 scanner is a device used to access a vehicle’s On-Board Diagnostics (OBD) system, which has been standardized as OBD2 in most countries since 1996, providing access to a wealth of information about the vehicle’s health and performance. According to the Environmental Protection Agency (EPA), all cars and light trucks sold in the US since 1996 are required to support OBD2, ensuring standardized access to diagnostic information. These scanners read Diagnostic Trouble Codes (DTCs), which are codes stored by the vehicle’s computer when it detects a problem.

1.2. Key Features of the U480 Scanner

The U480 scanner is known for its user-friendly design and essential diagnostic functions.

• Reads and Clears DTCs: Identifies and clears generic and manufacturer-specific Diagnostic Trouble Codes.
• Compatibility: Works with all OBD2/EOBD compliant vehicles, including those using CAN, VPW, PWM, ISO, and KWP2000 protocols.
• Display: Features an easy-to-read, backlit 2-line LCD display.
• VIN Retrieval: Retrieves Vehicle Identification Numbers on vehicles manufactured in 2002 and later that support Mode 9.
• Standalone Operation: Operates without needing a computer.
• Power: Powered via the OBD2 cable, so no batteries are required.

1.3. Benefits of Using a Diagnostic Scanner

Using a diagnostic scanner like the U480 offers several key advantages:

• Early Problem Detection: Detects potential issues before they become major problems.
• Cost Savings: Reduces expenses by allowing DIY diagnostics and avoiding unnecessary mechanic visits. A study by the National Institute for Automotive Service Excellence (ASE) found that using diagnostic tools can reduce repair costs by up to 40%.
• Informed Decisions: Provides the information needed to make informed decisions about vehicle maintenance and repairs.
• Verification of Repairs: Confirms that repairs have been performed correctly by clearing codes and monitoring the system.

2. First Steps: Setting Up Your U480 Scanner

How do you get started with your U480 scanner, and what does the U480 car diagnostic scanner manual say about initial setup?

To start using the U480 scanner effectively, you need to unpack it, familiarize yourself with its components, and understand how to connect it to your vehicle; CAR-TOOL.EDU.VN provides step-by-step guidance in the U480 car diagnostic scanner manual, ensuring users can quickly and correctly set up their device, enabling them to perform accurate vehicle diagnostics and maintenance. Ensure your vehicle is OBD2 compliant, typically found in vehicles made after 1996.

2.1. Unboxing and Initial Inspection

When you first receive your U480 scanner, make sure to check the contents against the included list to ensure everything is present and undamaged.

• Scanner Unit: The main U480 scanner device.
• OBD2 Cable: The cable used to connect the scanner to your vehicle’s OBD2 port.
• User Manual: A crucial document that provides instructions, troubleshooting tips, and code definitions.

Inspect each component for any signs of damage during shipping, such as cracks, loose connections, or frayed cables. If you notice any issues, contact the seller immediately for a replacement.

2.2. Understanding the Components

Familiarize yourself with the U480 scanner’s key components to ensure proper operation.

• LCD Screen: Displays diagnostic trouble codes, data, and menu options.
• OBD2 Connector: Plugs into the vehicle’s OBD2 port.
• Buttons: Used for navigating the menu, selecting options, and performing tests. The U480 typically has buttons like “Enter,” “Exit,” “Up,” and “Down.”
• Cable: Connects the scanner to the vehicle; ensure it is securely attached.

2.3. Connecting to Your Vehicle

Connecting the U480 scanner to your vehicle is a straightforward process.

1. Locate the OBD2 Port: This is usually found under the dashboard on the driver’s side. Consult your vehicle’s manual if you’re unsure of its exact location.
2. Turn Off the Ignition: Make sure your vehicle’s ignition is turned off before plugging in the scanner.
3. Plug in the Scanner: Connect the OBD2 connector of the U480 scanner into the vehicle’s OBD2 port. Ensure it clicks into place and is securely connected.
4. Turn On the Ignition: Turn the ignition to the “ON” position without starting the engine. This provides power to the scanner.
5. Scanner Activation: The U480 scanner should power on automatically. If it doesn’t, check the connection and ensure the vehicle’s ignition is in the correct position.

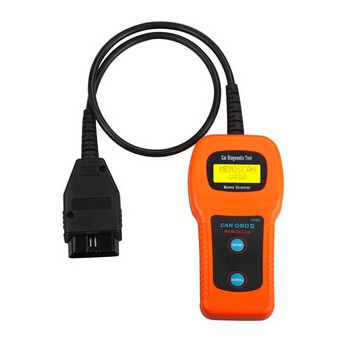

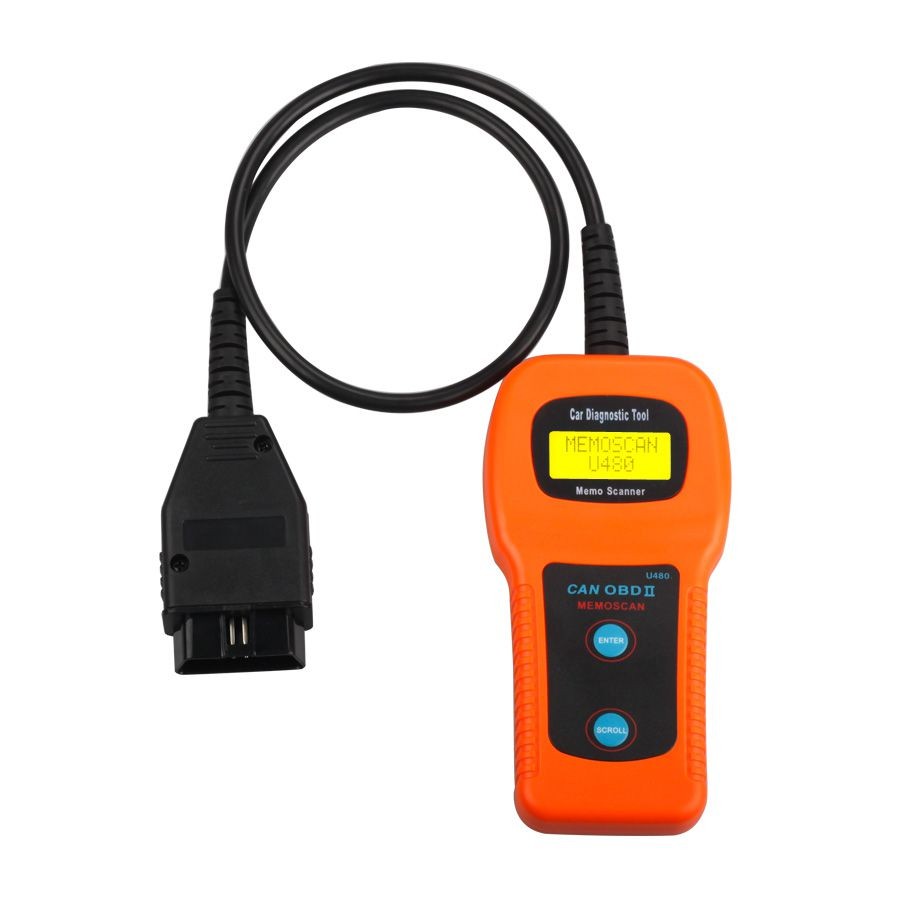

U480 OBD2 CAN BUS Engine Code Reader

3. Navigating the U480 Car Diagnostic Scanner Manual

How do you effectively use the U480 car diagnostic scanner manual to understand its functions?

To navigate the U480 car diagnostic scanner manual effectively, familiarize yourself with its structure and key sections; CAR-TOOL.EDU.VN highlights the importance of understanding the manual’s layout to quickly find information on error code definitions, troubleshooting steps, and scanner operations, enabling users to accurately diagnose and resolve vehicle issues. The manual typically includes sections on basic operations, error code lists, and advanced functions.

3.1. Understanding the Manual’s Structure

The U480 manual typically includes the following sections:

• Introduction: Provides an overview of the scanner and its features.
• Safety Information: Important warnings and precautions to prevent damage to the scanner or vehicle.
• Getting Started: Instructions on how to set up and connect the scanner.
• Basic Operations: Explains how to read and clear Diagnostic Trouble Codes (DTCs).
• Advanced Functions: Details on advanced features like VIN retrieval and data streaming (if supported).
• Troubleshooting: Solutions to common problems encountered while using the scanner.
• Error Code Definitions: A comprehensive list of DTCs and their meanings.

3.2. Key Sections to Focus On

When using the U480 manual, focus on these key sections for effective diagnostics:

• Error Code Definitions: This section is essential for understanding the meaning of DTCs and identifying the source of the problem.
• Troubleshooting: Provides step-by-step guidance on resolving common issues.
• Basic Operations: Ensures you know how to properly read and clear codes.
• Safety Information: Helps prevent damage to your vehicle or scanner.

3.3. Tips for Efficiently Using the Manual

To get the most out of your U480 manual:

• Read the Introduction: Get a clear overview of the scanner’s capabilities.
• Keep it Handy: Store the manual in a convenient location for quick reference.
• Use the Index: Quickly find specific topics or error codes.
• Highlight Important Information: Mark key sections or troubleshooting steps for easy access.
• Refer to it During Diagnostics: Always consult the manual when performing diagnostic tests to ensure accuracy.

4. Reading Diagnostic Trouble Codes (DTCs)

What steps should you take to read Diagnostic Trouble Codes (DTCs) using the U480 scanner and the U480 car diagnostic scanner manual?

To read Diagnostic Trouble Codes (DTCs) using the U480 scanner, connect the device, turn on the ignition, and follow the manual’s instructions to access the diagnostic menu; CAR-TOOL.EDU.VN emphasizes the importance of accurately interpreting these codes using the U480 car diagnostic scanner manual, allowing users to pinpoint issues and make informed repair decisions. DTCs are standardized codes used to identify specific problems within a vehicle.

4.1. Step-by-Step Guide to Reading Codes

Follow these steps to read DTCs using the U480 scanner:

1. Connect the Scanner: Plug the U480 scanner into the OBD2 port of your vehicle.
2. Turn On the Ignition: Turn the ignition to the “ON” position without starting the engine.
3. Navigate to the Diagnostic Menu: Use the scanner’s buttons to navigate to the diagnostic menu. This is often labeled as “Read Codes” or “Diagnostic Codes.”
4. Read the Codes: Select the option to read codes. The scanner will display any stored DTCs on the LCD screen.
5. Record the Codes: Write down each DTC along with any additional information provided by the scanner, such as the code description.

4.2. Understanding DTC Categories

DTCs are categorized into different types based on the system they relate to:

• P Codes (Powertrain): These codes relate to the engine, transmission, and related components. They are the most common type of DTC.
• B Codes (Body): These codes relate to body systems, such as the airbags, power windows, and door locks.
• C Codes (Chassis): These codes relate to chassis systems, such as the anti-lock braking system (ABS) and traction control system.
• U Codes (Network): These codes relate to the vehicle’s communication network, such as the CAN bus.

4.3. Interpreting Common Error Codes

Here are some common error codes and their general meanings:

Error Code	Description	Possible Causes
P0300	Random/Multiple Cylinder Misfire Detected	Faulty spark plugs, ignition coils, fuel injectors, vacuum leaks, or low compression.
P0171	System Too Lean (Bank 1)	Vacuum leak, faulty oxygen sensor, dirty fuel injectors, or a weak fuel pump.
P0420	Catalyst System Efficiency Below Threshold (Bank 1)	Faulty catalytic converter, exhaust leaks, or faulty oxygen sensors.
P0101	Mass Air Flow (MAF) Sensor Range/Performance	Dirty or faulty MAF sensor, vacuum leaks, or issues with the air intake system.
P0301	Cylinder 1 Misfire Detected	Faulty spark plug, ignition coil, fuel injector, or low compression in cylinder 1.
P0011	A Camshaft Position Timing – Over-Advanced or System Performance (Bank 1)	Low oil level, faulty camshaft position actuator, or timing chain issues.
P0113	Intake Air Temperature Sensor 1 Circuit High	Faulty intake air temperature (IAT) sensor or wiring issues.
P0401	Exhaust Gas Recirculation Flow Insufficient Detected	Clogged EGR valve, faulty EGR solenoid, or vacuum leaks in the EGR system.
P0442	Evaporative Emission Control System Leak Detected (Small Leak)	Loose or damaged fuel cap, cracked or disconnected vacuum lines in the EVAP system, or a faulty purge valve.
P0505	Idle Air Control System Malfunction	Dirty or faulty idle air control (IAC) valve, vacuum leaks, or issues with the throttle body.

It’s important to consult the U480 car diagnostic scanner manual for precise definitions and troubleshooting steps for each code.

5. Clearing Diagnostic Trouble Codes (DTCs)

What is the proper procedure for clearing Diagnostic Trouble Codes (DTCs) with the U480 scanner, as outlined in the U480 car diagnostic scanner manual?

To clear Diagnostic Trouble Codes (DTCs) with the U480 scanner, navigate to the “Clear Codes” option in the diagnostic menu after addressing the underlying issue; CAR-TOOL.EDU.VN advises following the U480 car diagnostic scanner manual’s instructions to ensure codes are properly cleared, and to prevent accidental data loss. Clearing codes can help reset the check engine light after repairs.

5.1. Step-by-Step Guide to Clearing Codes

Follow these steps to clear DTCs using the U480 scanner:

1. Connect the Scanner: Plug the U480 scanner into the OBD2 port of your vehicle.
2. Turn On the Ignition: Turn the ignition to the “ON” position without starting the engine.
3. Navigate to the Clear Codes Menu: Use the scanner’s buttons to navigate to the “Clear Codes” or “Erase Codes” menu.
4. Confirm the Erase: Select the option to clear the codes. The scanner will ask for confirmation.
5. Verify the Clear: After clearing the codes, turn off the ignition for a few minutes, then turn it back on and read the codes again to ensure they have been successfully cleared.

5.2. When to Clear Codes

Only clear codes after you have:

• Identified and Fixed the Problem: Clearing codes without addressing the underlying issue will only result in the codes reappearing.
• Verified the Repair: Ensure the repair has been performed correctly and the system is functioning as expected.

5.3. Potential Issues and Solutions

• Codes Reappear: If the codes reappear after clearing them, it indicates that the underlying issue has not been resolved. Re-diagnose the problem and perform the necessary repairs.
• Scanner Won’t Clear Codes: Ensure the ignition is in the “ON” position and the scanner is properly connected. If the issue persists, consult the U480 car diagnostic scanner manual for troubleshooting steps or contact technical support.

U480 OBD2 CAN BUS Engine Code Reader

6. Advanced Features and Functions

What advanced features does the U480 scanner offer, and how can the U480 car diagnostic scanner manual help you utilize them effectively?

The U480 scanner may include advanced features such as VIN retrieval and live data streaming, which the U480 car diagnostic scanner manual explains in detail; CAR-TOOL.EDU.VN highlights that understanding these functions can provide deeper insights into your vehicle’s performance, enabling more accurate diagnoses and effective maintenance. These features require careful setup and interpretation.

6.1. VIN Retrieval

The Vehicle Identification Number (VIN) is a unique code that identifies your vehicle. Retrieving the VIN can be useful for:

• Vehicle Information: Obtaining detailed information about your vehicle, such as the year, make, model, and engine type.
• Parts Lookup: Ensuring you purchase the correct parts for your vehicle.
• Warranty Information: Checking warranty coverage and recall information.

To retrieve the VIN using the U480 scanner:

1. Connect the Scanner: Plug the U480 scanner into the OBD2 port of your vehicle.
2. Turn On the Ignition: Turn the ignition to the “ON” position without starting the engine.
3. Navigate to the VIN Retrieval Menu: Use the scanner’s buttons to navigate to the “VIN Retrieval” or “Vehicle Info” menu.
4. Read the VIN: Select the option to read the VIN. The scanner will display the VIN on the LCD screen.

6.2. Live Data Streaming (if supported)

Some versions of the U480 scanner may support live data streaming, which allows you to view real-time data from your vehicle’s sensors. This can be useful for:

• Monitoring Engine Performance: Viewing data such as engine RPM, coolant temperature, and oxygen sensor readings.
• Diagnosing Intermittent Problems: Identifying issues that may not trigger a DTC but are still affecting performance.
• Verifying Repairs: Ensuring that sensors and components are functioning correctly after a repair.

To use live data streaming:

1. Connect the Scanner: Plug the U480 scanner into the OBD2 port of your vehicle.
2. Turn On the Ignition: Turn the ignition to the “ON” position without starting the engine.
3. Navigate to the Live Data Menu: Use the scanner’s buttons to navigate to the “Live Data” or “Data Stream” menu.
4. Select Data Parameters: Choose the data parameters you want to monitor.
5. View the Data: The scanner will display real-time data from the selected sensors.

6.3. Interpreting Live Data

Interpreting live data requires some technical knowledge and an understanding of how your vehicle’s systems operate. Here are some tips:

• Compare to Specifications: Compare the live data readings to the specifications in your vehicle’s repair manual or online databases.
• Look for Abnormalities: Identify any readings that are outside the normal range or fluctuate erratically.
• Use Multiple Parameters: Analyze multiple data parameters together to get a more complete picture of the system’s performance.

7. Troubleshooting Common Issues

What common issues might you encounter while using the U480 scanner, and how does the U480 car diagnostic scanner manual assist in resolving them?

While using the U480 scanner, you may face issues like connectivity problems, incorrect readings, or software glitches, but the U480 car diagnostic scanner manual provides troubleshooting steps to address these effectively; CAR-TOOL.EDU.VN recommends consulting the manual for quick solutions, ensuring minimal disruption and accurate vehicle diagnostics. Addressing these issues promptly is crucial.

7.1. Scanner Not Connecting

If the U480 scanner is not connecting to your vehicle, try the following:

• Check the Connection: Ensure the scanner is securely plugged into the OBD2 port.
• Verify the Ignition: Make sure the ignition is in the “ON” position without starting the engine.
• Check the OBD2 Port: Inspect the OBD2 port for any damage or corrosion.
• Test on Another Vehicle: If possible, test the scanner on another OBD2 compliant vehicle to rule out issues with the scanner itself.

7.2. Incorrect Readings

If the U480 scanner is displaying incorrect readings, consider these steps:

• Verify the Vehicle Compatibility: Ensure the scanner is compatible with your vehicle’s make and model.
• Check for Software Updates: Some scanners may require software updates to function correctly with newer vehicles.
• Consult the Manual: Refer to the U480 car diagnostic scanner manual for specific troubleshooting steps.
• Use a Second Opinion: Compare the readings with another diagnostic tool to confirm accuracy.

7.3. Software Glitches

If the U480 scanner is experiencing software glitches, try these solutions:

• Restart the Scanner: Turn off the scanner and turn it back on.
• Check for Updates: Visit the manufacturer’s website to see if there are any software updates available for your scanner.
• Reset to Factory Settings: Some scanners have a reset option that can restore the device to its original factory settings. Note that this may erase any saved data.

8. Maintaining Your U480 Scanner

How should you properly maintain your U480 scanner to ensure its longevity, and what guidelines does the U480 car diagnostic scanner manual offer?

To maintain your U480 scanner, store it in a dry environment, keep the connector clean, and regularly check for software updates, following the maintenance tips in the U480 car diagnostic scanner manual; CAR-TOOL.EDU.VN stresses that proper care extends the scanner’s lifespan and ensures accurate, reliable performance. Regular maintenance is essential.

8.1. Storage Tips

• Keep it Dry: Store the scanner in a dry, moisture-free environment.
• Protect from Extreme Temperatures: Avoid exposing the scanner to extreme temperatures, as this can damage the internal components.
• Use a Case: Store the scanner in a protective case to prevent physical damage.

8.2. Cleaning and Care

• Keep the Connector Clean: Regularly clean the OBD2 connector to ensure a good connection with the vehicle’s OBD2 port. Use a clean, dry cloth to wipe away any dirt or debris.
• Avoid Harsh Chemicals: Do not use harsh chemicals or solvents to clean the scanner, as this can damage the plastic casing and internal components.
• Handle with Care: Avoid dropping or mishandling the scanner, as this can cause internal damage.

8.3. Software Updates

• Check Regularly: Regularly check the manufacturer’s website for software updates.
• Install Updates: Install any available software updates to ensure the scanner is functioning correctly and has the latest features and vehicle compatibility.
• Follow Instructions: Follow the manufacturer’s instructions carefully when installing software updates to avoid any issues.

9. Where to Find the U480 Car Diagnostic Scanner Manual

Where can you reliably find the U480 car diagnostic scanner manual, and what should you do if it’s missing from your product packaging?

You can usually find the U480 car diagnostic scanner manual included in the product packaging or available for download on the manufacturer’s website; CAR-TOOL.EDU.VN advises checking both sources to ensure you have access to the most up-to-date version, which is essential for effective scanner use and troubleshooting. Always verify the source’s credibility.

9.1. Included in the Product Packaging

The U480 car diagnostic scanner manual is typically included in the product packaging. It is usually a printed booklet or a CD-ROM containing a digital version of the manual.

9.2. Manufacturer’s Website

If you cannot find the manual in the product packaging, you can usually download it from the manufacturer’s website. Look for a “Support” or “Downloads” section on the website.

9.3. Online Forums and Communities

In some cases, you may be able to find the U480 car diagnostic scanner manual on online forums and communities dedicated to automotive diagnostics. However, be cautious when downloading files from unofficial sources, as they may contain malware or be outdated.

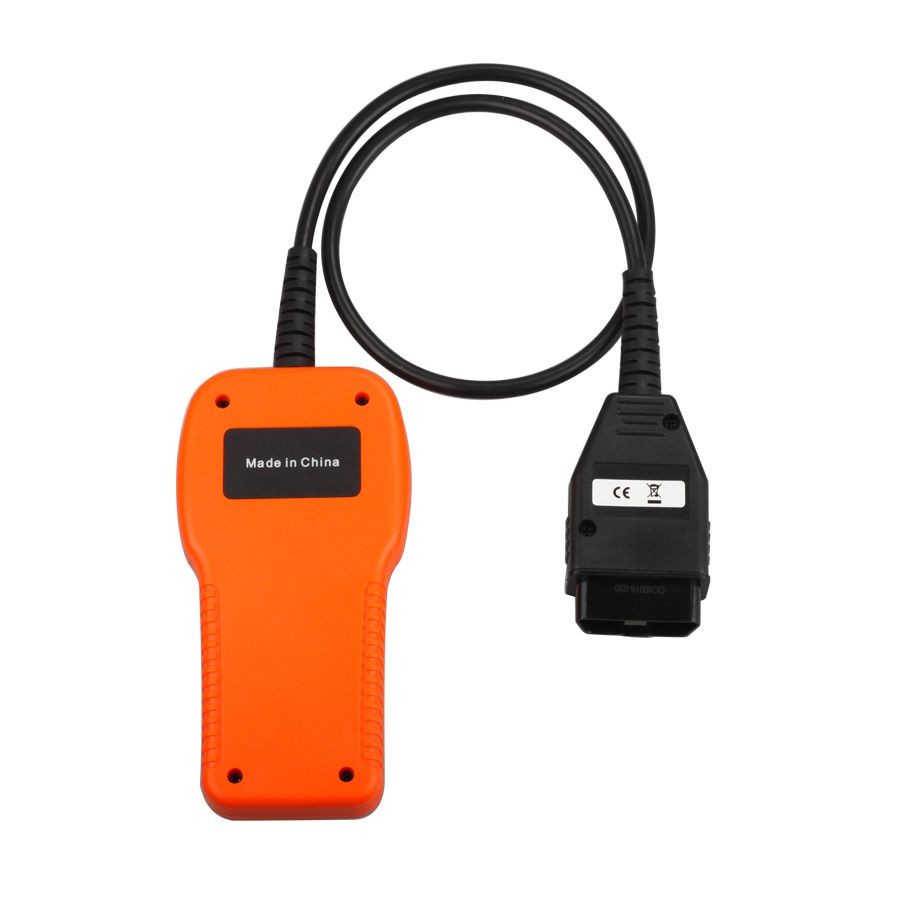

U480 OBD2 CAN BUS Engine Code Reader

10. Benefits of Seeking Professional Advice

When should you consider seeking professional advice for vehicle diagnostics, even with the U480 scanner and the U480 car diagnostic scanner manual at your disposal?

Even with the U480 scanner and the U480 car diagnostic scanner manual, seeking professional advice is beneficial for complex or persistent issues, ensuring accurate diagnoses and avoiding potential damage to your vehicle; CAR-TOOL.EDU.VN recommends consulting certified mechanics for expert insights, which can save time and money in the long run. Professional advice complements DIY diagnostics.

10.1. Complex Diagnostic Issues

If you are encountering complex diagnostic issues that you cannot resolve with the U480 scanner and manual, it may be time to seek professional advice. Complex issues may involve multiple error codes, intermittent problems, or symptoms that are difficult to diagnose.

10.2. Persistent Problems

If you have attempted to repair a problem based on the U480 scanner’s diagnosis, but the issue persists, it is a sign that the underlying cause may be more complex than initially thought. A professional mechanic can perform a more thorough diagnosis and identify the root cause of the problem.

10.3. Potential for Damage

If you are unsure about how to perform a repair or are concerned about potentially damaging your vehicle, it is best to seek professional advice. Incorrect repairs can lead to further damage and costly repairs.

FAQ About the U480 Car Diagnostic Scanner

Here are some frequently asked questions about the U480 car diagnostic scanner:

1. Is the U480 scanner compatible with my vehicle?
The U480 scanner is compatible with all OBD2/EOBD compliant vehicles, which includes most cars and trucks manufactured after 1996. Check your vehicle’s manual to confirm its OBD2 compliance.

2. How do I update the software on my U480 scanner?
Visit the manufacturer’s website and look for a “Support” or “Downloads” section. Follow the instructions provided to download and install the latest software updates.

3. What do I do if the scanner won’t connect to my vehicle?
Check the connection, verify the ignition is on, inspect the OBD2 port, and test the scanner on another vehicle to rule out issues with the scanner itself.

4. Can I clear codes without fixing the problem?
It is not recommended to clear codes without fixing the underlying issue, as the codes will likely reappear. Always address the problem before clearing codes.

5. Where can I find a list of error codes and their meanings?
The U480 car diagnostic scanner manual includes a comprehensive list of DTCs and their meanings. You can also find this information online.

6. Is the U480 scanner suitable for professional mechanics?
The U480 scanner is primarily designed for DIY enthusiasts and light-duty use. Professional mechanics may prefer more advanced diagnostic tools with additional features and capabilities.

7. What does it mean when a code reappears after clearing it?
If a code reappears after clearing it, it indicates that the underlying issue has not been resolved. You will need to re-diagnose the problem and perform the necessary repairs.

8. Can the U480 scanner read ABS or airbag codes?
The U480 scanner typically reads engine-related codes. For ABS and airbag codes, you may need a more advanced scanner that supports these systems.

9. How do I know if my vehicle supports VIN retrieval?
VIN retrieval is supported on vehicles manufactured in 2002 and later that support Mode 9. Check your vehicle’s manual for more information.

10. What should I do if I’m not sure how to interpret the scanner’s readings?
If you’re unsure how to interpret the scanner’s readings, consult the U480 car diagnostic scanner manual, seek advice from a qualified mechanic, or consult online automotive forums.

By understanding and utilizing the U480 car diagnostic scanner manual, you can effectively diagnose and resolve many common vehicle issues, saving time and money on automotive repairs. Remember to follow safety precautions, perform regular maintenance on your scanner, and seek professional advice when needed.

For more detailed information and assistance, contact CAR-TOOL.EDU.VN at 456 Elm Street, Dallas, TX 75201, United States, or via Whatsapp at +1 (641) 206-8880. You can also visit our website at CAR-TOOL.EDU.VN for a wide range of automotive tools and resources.
