DIY Car Diagnostic Tool: Your Guide to Automotive Troubleshooting

Diy Car Diagnostic Tools empower you to troubleshoot automotive issues efficiently. CAR-TOOL.EDU.VN offers a range of solutions, from OBD-II scanners to code readers, providing detailed insights for informed decisions. Explore repair options and enhance maintenance practices using vehicle diagnostic tools and automotive diagnostic equipment.

1. What is a DIY Car Diagnostic Tool?

A DIY car diagnostic tool is a device that helps you identify problems with your vehicle by reading data from its onboard computer. These tools range from simple code readers that display error codes to advanced scan tools that provide detailed information about various vehicle systems. According to a 2022 report by Grand View Research, the global automotive diagnostics market is expected to grow, driven by increasing vehicle complexity and the need for efficient maintenance solutions.

1.1. What are the Key Components of a DIY Car Diagnostic Tool?

The key components of a DIY car diagnostic tool include:

• OBD-II Connector: This connects the tool to your vehicle’s OBD-II port, typically located under the dashboard.
• Microprocessor: This processes the data received from the vehicle’s computer.
• Display Screen: This shows the diagnostic information, which can range from simple error codes to detailed sensor readings.
• Software: This interprets the data and provides user-friendly information. Advanced tools often include databases with troubleshooting tips and repair procedures.
• User Interface: Buttons or touch screen for navigating the tool’s functions.

1.2. How Does a DIY Car Diagnostic Tool Work?

A DIY car diagnostic tool works by plugging into your car’s OBD-II port and communicating with the vehicle’s computer system. When your car’s check engine light comes on, it indicates that the computer has detected a problem. The diagnostic tool reads the error codes stored in the computer, which correspond to specific issues. These codes can then be looked up in a database to identify the problem area. According to the Society of Automotive Engineers (SAE), the OBD-II standard ensures that all vehicles manufactured since 1996 have a standardized diagnostic interface.

1.3. What are the Benefits of Using a DIY Car Diagnostic Tool?

Using a DIY car diagnostic tool offers several benefits:

• Cost Savings: Identifying and fixing minor issues yourself can save money on expensive mechanic visits.
• Time Efficiency: You can quickly diagnose problems without waiting for a mechanic to become available.
• Informed Decisions: Understanding the issue allows you to make informed decisions about repairs.
• Preventive Maintenance: Regular diagnostics can help identify potential problems before they become major issues.
• Vehicle Knowledge: Using a diagnostic tool increases your understanding of your car’s systems.

2. Types of DIY Car Diagnostic Tools

There are several types of DIY car diagnostic tools available, each with its own features and capabilities. Choosing the right tool depends on your budget, technical skills, and the level of diagnostic information you need. A study by the University of California, Berkeley, found that using advanced diagnostic tools can significantly reduce repair times and improve accuracy in diagnosing complex automotive issues.

2.1. Code Readers

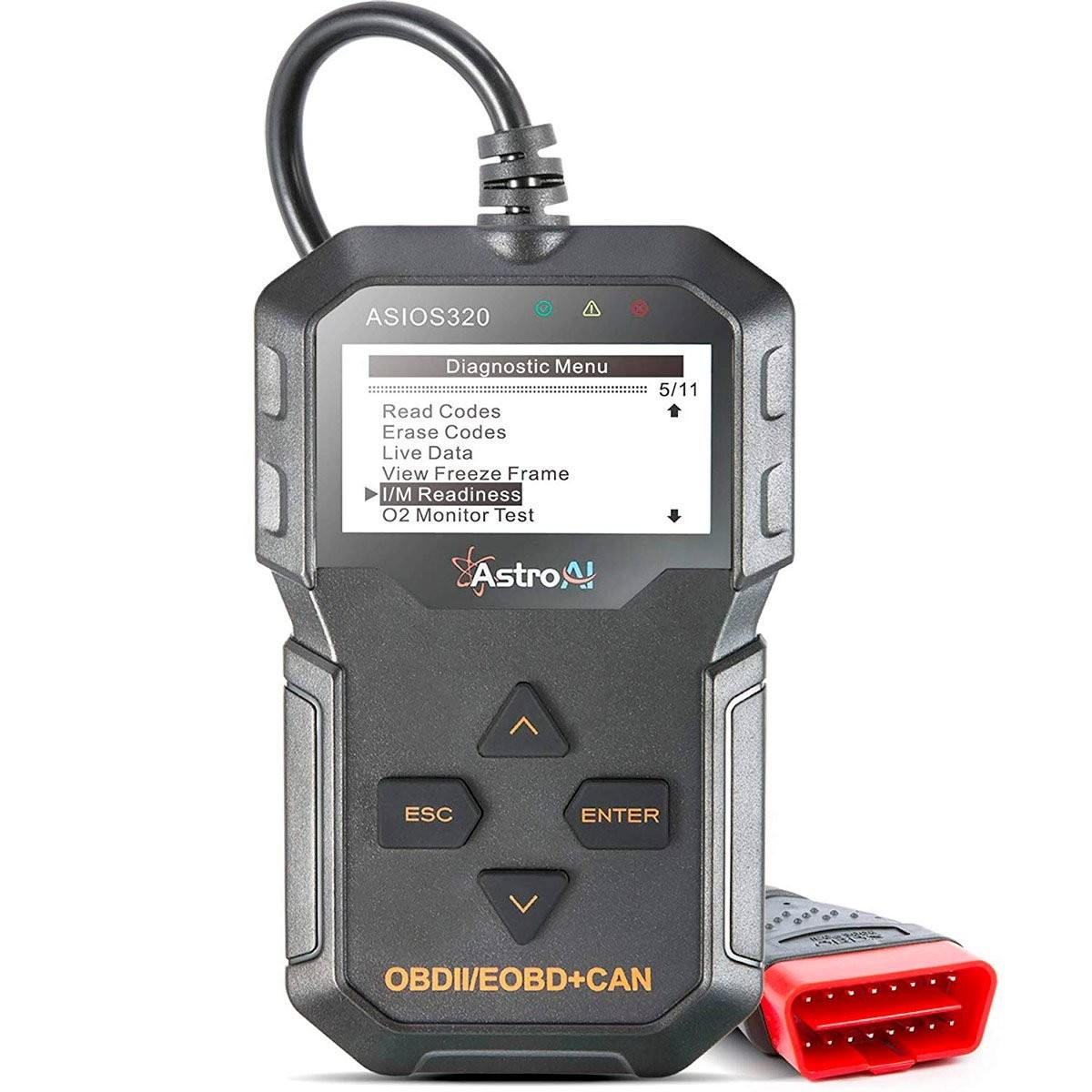

A code reader is a basic tool that retrieves diagnostic trouble codes (DTCs) from your vehicle’s computer. It displays the codes, which you can then look up in a manual or online database to identify the problem. Code readers are simple to use and relatively inexpensive, making them a good choice for basic diagnostics.

2.1.1. What are the Features of a Code Reader?

The features of a code reader typically include:

• DTC Retrieval: Reads diagnostic trouble codes.
• Code Clearing: Allows you to clear the check engine light after addressing the issue.
• Basic Display: Shows the error codes on a small screen.
• OBD-II Compatibility: Works with all vehicles manufactured since 1996.

2.1.2. How to Use a Code Reader?

To use a code reader:

1. Plug the reader into the OBD-II port.
2. Turn the ignition to the “on” position without starting the engine.
3. Follow the reader’s instructions to retrieve the DTCs.
4. Look up the codes in a database to identify the problem.
5. After addressing the issue, use the reader to clear the codes and turn off the check engine light.

2.1.3. What are the Advantages and Disadvantages of Using a Code Reader?

The advantages of using a code reader include:

• Affordability: Code readers are inexpensive.
• Simplicity: Easy to use, even for beginners.
• Quick Diagnostics: Quickly retrieves error codes.

The disadvantages include:

• Limited Information: Only provides error codes, not detailed diagnostic data.
• Requires Manual Lookup: You need to look up the codes to identify the problem.
• No Advanced Features: Lacks advanced features like live data streaming or component testing.

2.2. Scan Tools

A scan tool is a more advanced diagnostic tool that offers a wider range of features than a code reader. In addition to retrieving DTCs, scan tools can provide live data, perform component testing, and offer detailed diagnostic information. Scan tools are ideal for more complex diagnostic tasks and are often used by professional mechanics.

2.2.1. What are the Features of a Scan Tool?

The features of a scan tool typically include:

• DTC Retrieval and Clearing: Reads and clears diagnostic trouble codes.
• Live Data Streaming: Displays real-time data from various sensors.
• Component Testing: Allows you to test individual components, such as sensors and actuators.
• Detailed Diagnostic Information: Provides information about the cause and potential solutions for the problem.
• Graphing Capabilities: Displays data in graph form for easier analysis.
• Enhanced Coverage: Supports a wider range of vehicles and systems.

2.2.2. How to Use a Scan Tool?

To use a scan tool:

1. Plug the tool into the OBD-II port.
2. Turn the ignition to the “on” position without starting the engine.
3. Follow the tool’s instructions to select your vehicle’s make, model, and year.
4. Retrieve the DTCs and review the live data.
5. Perform component testing as needed.
6. Use the tool’s diagnostic information to identify the problem and plan repairs.
7. After addressing the issue, clear the codes and verify the repair.

2.2.3. What are the Advantages and Disadvantages of Using a Scan Tool?

The advantages of using a scan tool include:

• Comprehensive Diagnostics: Provides detailed information for accurate diagnoses.
• Live Data Streaming: Allows you to monitor real-time sensor data.
• Component Testing: Enables you to test individual components.
• Enhanced Coverage: Supports a wider range of vehicles and systems.

The disadvantages include:

• Higher Cost: Scan tools are more expensive than code readers.
• Complexity: Can be more difficult to use, especially for beginners.
• Requires Training: Understanding the data and performing tests may require some training.

2.3. Smartphone-Based Diagnostic Tools

Smartphone-based diagnostic tools use a Bluetooth or Wi-Fi adapter that plugs into the OBD-II port and communicates with an app on your smartphone. These tools offer many of the same features as scan tools, but with the convenience of using your smartphone as the display and interface. They are often more affordable than dedicated scan tools and offer access to a wide range of apps and features.

2.3.1. What are the Features of Smartphone-Based Diagnostic Tools?

The features of smartphone-based diagnostic tools typically include:

• DTC Retrieval and Clearing: Reads and clears diagnostic trouble codes.
• Live Data Streaming: Displays real-time data on your smartphone.
• Component Testing: Some apps offer component testing capabilities.
• Customizable Dashboards: Allows you to create custom dashboards to monitor specific data.
• Cloud Connectivity: Stores diagnostic data in the cloud for easy access and sharing.
• Third-Party App Support: Works with a variety of diagnostic apps.

2.3.2. How to Use Smartphone-Based Diagnostic Tools?

To use a smartphone-based diagnostic tool:

1. Plug the adapter into the OBD-II port.
2. Pair the adapter with your smartphone via Bluetooth or Wi-Fi.
3. Download and install a compatible diagnostic app.
4. Follow the app’s instructions to connect to your vehicle.
5. Retrieve the DTCs and review the live data.
6. Perform component testing as needed.
7. Use the app’s diagnostic information to identify the problem and plan repairs.
8. After addressing the issue, clear the codes and verify the repair.

2.3.3. What are the Advantages and Disadvantages of Using Smartphone-Based Diagnostic Tools?

The advantages of using smartphone-based diagnostic tools include:

• Convenience: Uses your smartphone as the display and interface.
• Affordability: Often more affordable than dedicated scan tools.
• Versatility: Access to a wide range of apps and features.
• Cloud Connectivity: Stores data in the cloud for easy access.

The disadvantages include:

• App Compatibility: Requires a compatible app, which may have subscription fees.
• Smartphone Dependence: Relies on your smartphone’s battery and connectivity.
• Security Concerns: Potential security risks with third-party apps.

3. Key Features to Look for in a DIY Car Diagnostic Tool

When choosing a DIY car diagnostic tool, consider the following key features to ensure it meets your needs. Research from the University of Michigan Transportation Research Institute suggests that diagnostic tools with advanced features can significantly improve the accuracy and efficiency of automotive repairs.

3.1. OBD-II Compatibility

Ensure the tool is compatible with the OBD-II standard, which is required for all vehicles manufactured since 1996 in the United States. This ensures that the tool can communicate with your vehicle’s computer and retrieve diagnostic information.

3.2. DTC Retrieval and Clearing

The tool should be able to retrieve diagnostic trouble codes (DTCs) and clear them after addressing the issue. This is a basic function for any diagnostic tool and is essential for identifying and resolving problems.

3.3. Live Data Streaming

Live data streaming allows you to monitor real-time data from various sensors, such as engine temperature, RPM, and oxygen sensor readings. This can be invaluable for diagnosing intermittent problems and understanding how your vehicle’s systems are functioning.

3.4. Component Testing

Component testing enables you to test individual components, such as sensors and actuators, to determine if they are functioning correctly. This can help you pinpoint the source of a problem and avoid replacing unnecessary parts.

3.5. Enhanced Coverage

Look for a tool that supports a wide range of vehicles and systems. Some tools are limited to basic engine and transmission diagnostics, while others offer coverage for ABS, airbags, and other systems.

3.6. User-Friendly Interface

The tool should have a user-friendly interface that is easy to navigate and understand. A clear display, intuitive menus, and helpful documentation can make the diagnostic process much easier.

3.7. Software Updates

Ensure the tool supports software updates to stay current with the latest vehicle models and diagnostic information. Regular updates can improve the tool’s accuracy and coverage.

3.8. Wireless Connectivity

Some tools offer wireless connectivity via Bluetooth or Wi-Fi, allowing you to connect to your smartphone or computer for data logging and analysis. This can be a convenient feature for advanced diagnostics.

4. Top DIY Car Diagnostic Tool Brands

Several brands offer high-quality DIY car diagnostic tools. Here are some of the top brands to consider:

4.1. Autel

Autel is a well-known brand that offers a wide range of diagnostic tools, from basic code readers to advanced scan tools. Their tools are known for their comprehensive coverage, advanced features, and user-friendly interfaces.

4.2. Innova

Innova is another popular brand that offers a variety of diagnostic tools for DIYers and professionals. Their tools are known for their reliability, accuracy, and affordability.

4.3. BlueDriver

BlueDriver specializes in smartphone-based diagnostic tools that offer a range of features and capabilities. Their tools are known for their ease of use and compatibility with a wide range of vehicles.

4.4. Bosch

Bosch is a trusted brand in the automotive industry and offers a range of diagnostic tools for professionals and DIYers. Their tools are known for their quality, accuracy, and advanced features.

4.5. Launch

Launch offers a variety of diagnostic tools with advanced capabilities, including OE-level diagnostics and programming functions. Their tools are often used by professional mechanics.

5. How to Choose the Right DIY Car Diagnostic Tool for Your Needs

Choosing the right DIY car diagnostic tool depends on your specific needs and budget. Consider the following factors when making your decision:

5.1. Your Skill Level

If you are a beginner, start with a basic code reader or smartphone-based tool that is easy to use. As you gain experience, you can upgrade to a more advanced scan tool.

5.2. Your Vehicle Type

Ensure the tool is compatible with your vehicle’s make, model, and year. Some tools are limited to certain vehicle types, while others offer wider coverage.

5.3. Your Budget

Diagnostic tools range in price from under $50 for basic code readers to several thousand dollars for advanced scan tools. Set a budget and choose a tool that offers the features you need within your price range.

5.4. The Features You Need

Consider the features you need, such as live data streaming, component testing, and enhanced coverage. Choose a tool that offers the features that are most important to you.

5.5. Read Reviews

Read reviews from other users to get an idea of the tool’s performance and reliability. Look for reviews that discuss the tool’s accuracy, ease of use, and customer support.

6. Common DIY Car Diagnostic Tool Codes and What They Mean

Understanding common diagnostic trouble codes (DTCs) can help you quickly identify and address problems with your vehicle. Here are some common codes and their meanings:

6.1. P0300 – Random/Multiple Cylinder Misfire Detected

This code indicates that the engine is misfiring, which means that one or more cylinders are not firing properly. This can be caused by a variety of issues, such as faulty spark plugs, ignition coils, fuel injectors, or vacuum leaks.

6.2. P0171 – System Too Lean (Bank 1)

This code indicates that the air-fuel mixture is too lean, which means that there is too much air and not enough fuel. This can be caused by a vacuum leak, a faulty oxygen sensor, or a clogged fuel filter.

6.3. P0420 – Catalyst System Efficiency Below Threshold (Bank 1)

This code indicates that the catalytic converter is not working efficiently. This can be caused by a faulty catalytic converter, a faulty oxygen sensor, or exhaust leaks.

6.4. P0301 – Cylinder 1 Misfire Detected

This code indicates that cylinder 1 is misfiring. This can be caused by a faulty spark plug, ignition coil, fuel injector, or valve issue in cylinder 1.

6.5. P0011 – “A” Camshaft Position – Timing Over-Advanced or System Performance (Bank 1)

This code indicates that the camshaft timing is over-advanced. This can be caused by a faulty camshaft position sensor, a clogged oil passage, or a faulty variable valve timing (VVT) system.

7. DIY Car Diagnostic Tool Maintenance Tips

Proper maintenance can extend the life of your DIY car diagnostic tool and ensure accurate readings. Here are some maintenance tips:

7.1. Keep the Tool Clean

Clean the tool regularly with a soft, dry cloth. Avoid using harsh chemicals or solvents, as they can damage the tool.

7.2. Store the Tool Properly

Store the tool in a cool, dry place away from direct sunlight and extreme temperatures. Use the tool’s case or a protective bag to prevent damage.

7.3. Update the Software Regularly

Update the tool’s software regularly to stay current with the latest vehicle models and diagnostic information. Check the manufacturer’s website for updates.

7.4. Handle the Tool Carefully

Handle the tool carefully to avoid dropping or damaging it. Avoid pulling on the cable or connector, as this can cause damage.

7.5. Replace the Batteries

If the tool uses batteries, replace them regularly to ensure proper operation. Use the correct type of batteries and follow the manufacturer’s instructions.

8. The Future of DIY Car Diagnostic Tools

The future of DIY car diagnostic tools is likely to include more advanced features, such as artificial intelligence (AI) and machine learning (ML). These technologies can help diagnose problems more accurately and efficiently, and provide more detailed repair information. According to a report by MarketsandMarkets, the AI in automotive diagnostics market is expected to grow significantly in the coming years, driven by the increasing complexity of vehicles and the need for advanced diagnostic solutions.

8.1. AI-Powered Diagnostics

AI-powered diagnostic tools can analyze data from multiple sensors and systems to identify complex problems that would be difficult to diagnose manually. They can also learn from past repairs and provide more accurate and personalized diagnostic information.

8.2. Remote Diagnostics

Remote diagnostics allows you to connect to your vehicle remotely and diagnose problems from anywhere in the world. This can be useful for troubleshooting problems while traveling or for getting assistance from a remote technician.

8.3. Predictive Maintenance

Predictive maintenance uses data from your vehicle to predict when components are likely to fail. This allows you to perform maintenance before a problem occurs, preventing costly repairs and downtime.

8.4. Augmented Reality (AR)

Augmented reality (AR) can overlay diagnostic information onto your vehicle, making it easier to identify and repair problems. This can be especially useful for complex repairs that require detailed instructions.

9. Benefits of Sourcing Car Diagnostic Tools Information from CAR-TOOL.EDU.VN

Sourcing your car diagnostic tools information from CAR-TOOL.EDU.VN offers numerous benefits. You gain access to detailed product specifications, comparative analyses, and user reviews, ensuring you make well-informed decisions. Our platform provides expert insights and up-to-date information, helping you find the perfect tools tailored to your specific needs.

9.1. Comprehensive Product Information

CAR-TOOL.EDU.VN provides extensive information on a wide range of car diagnostic tools, including detailed specifications, features, and compatibility details. This comprehensive information helps you understand the capabilities of each tool and how it can benefit your specific needs.

9.2. Expert Reviews and Comparisons

Our platform offers expert reviews and comparisons of various car diagnostic tools, highlighting their strengths and weaknesses. These reviews are based on thorough testing and analysis, providing you with unbiased insights to aid your decision-making process.

9.3. User Feedback and Testimonials

CAR-TOOL.EDU.VN features user feedback and testimonials, allowing you to learn from the experiences of other users. This real-world perspective can help you understand how a particular tool performs in practical scenarios and whether it meets the expectations of other DIY enthusiasts and professionals.

9.4. Up-to-Date Information and Trends

We stay current with the latest trends and advancements in car diagnostic technology, ensuring that our information is always up-to-date. This allows you to stay informed about new products, features, and best practices in the industry.

9.5. Tailored Recommendations

Based on your specific needs and requirements, CAR-TOOL.EDU.VN offers tailored recommendations to help you find the perfect car diagnostic tools. Whether you are a beginner or an experienced mechanic, our platform provides guidance to match you with the most suitable options.

10. Frequently Asked Questions (FAQs) About DIY Car Diagnostic Tools

Here are some frequently asked questions about DIY car diagnostic tools:

10.1. What type of car diagnostic tool is right for me?

The right type of car diagnostic tool depends on your skill level, vehicle type, and budget. Basic code readers are suitable for beginners, while advanced scan tools are better for experienced users.

10.2. Are DIY car diagnostic tools accurate?

DIY car diagnostic tools can be accurate, but their accuracy depends on the quality of the tool and the user’s understanding of the data. It’s essential to use a reputable brand and follow the manufacturer’s instructions.

10.3. Can a DIY car diagnostic tool fix my car?

A DIY car diagnostic tool can help you identify the problem, but it cannot fix your car. You will need to perform the necessary repairs yourself or take your car to a mechanic.

10.4. Do I need to update my car diagnostic tool?

Yes, you should update your car diagnostic tool regularly to stay current with the latest vehicle models and diagnostic information. Check the manufacturer’s website for updates.

10.5. How do I clear the check engine light after fixing the problem?

You can clear the check engine light using your car diagnostic tool. Follow the tool’s instructions to clear the codes and turn off the light.

10.6. What does OBD-II compatibility mean?

OBD-II compatibility means that the tool is compatible with the On-Board Diagnostics II standard, which is required for all vehicles manufactured since 1996 in the United States.

10.7. Can I use a car diagnostic tool on any car?

You can use a car diagnostic tool on any car that is OBD-II compatible, which includes most vehicles manufactured since 1996.

10.8. What is live data streaming?

Live data streaming allows you to monitor real-time data from various sensors, such as engine temperature, RPM, and oxygen sensor readings.

10.9. What is component testing?

Component testing enables you to test individual components, such as sensors and actuators, to determine if they are functioning correctly.

10.10. Where can I buy a DIY car diagnostic tool?

You can buy a DIY car diagnostic tool from auto parts stores, online retailers, and directly from the manufacturer. Consider exploring the range of options available at CAR-TOOL.EDU.VN.

By understanding the different types of DIY car diagnostic tools, their features, and how to use them, you can effectively troubleshoot and maintain your vehicle. Regular diagnostics can save you money on expensive repairs and keep your car running smoothly. For further assistance and expert advice, contact CAR-TOOL.EDU.VN at 456 Elm Street, Dallas, TX 75201, United States, or via Whatsapp at +1 (641) 206-8880. Visit our website at CAR-TOOL.EDU.VN for more information.

![Mechanic Using Scan Tool](http://car-tool.edu.vn/wp-content/uploads/2025/04/scan.jpg){width=1200 height=1200}

Alt text: Mechanic using DIY car diagnostic scan tool to troubleshoot engine issues in a garage.

![Code Reader Display](http://CAR-TOOL.edu.vn/wp-content/uploads/2025/04/code.jpg){width=1200 height=1200}

Alt text: Close-up of code reader showing diagnostic trouble codes (DTC) on its display screen.
